AG4 Micro Coin Cell Case (100 Sets/Pack)

AG4 Micro Coin Cell Case / Battery Shell (316 SS)

Application:
Designed for the research and assembly of miniature AG4 button cell batteries. The high-quality material makes it suitable for experiments requiring high corrosion resistance.

Key Features:
* Integrated Design: Features a unique structure where the sealing ring and negative case are integrated as a single unit, simplifying the assembly process.
* Superior Material: The case body is manufactured from 316 Stainless Steel, providing better chemical stability and corrosion resistance compared to standard 304 steel.
* Composition: Each set includes two main components: the AG4 positive case and the integrated negative case (with PP sealing ring).

Key Specifications:
Model: AG4
Case Material: 316 Stainless Steel
Sealing Ring Material: PP Plastic (Polypropylene)
Packaging Unit: 100 Sets/Pack

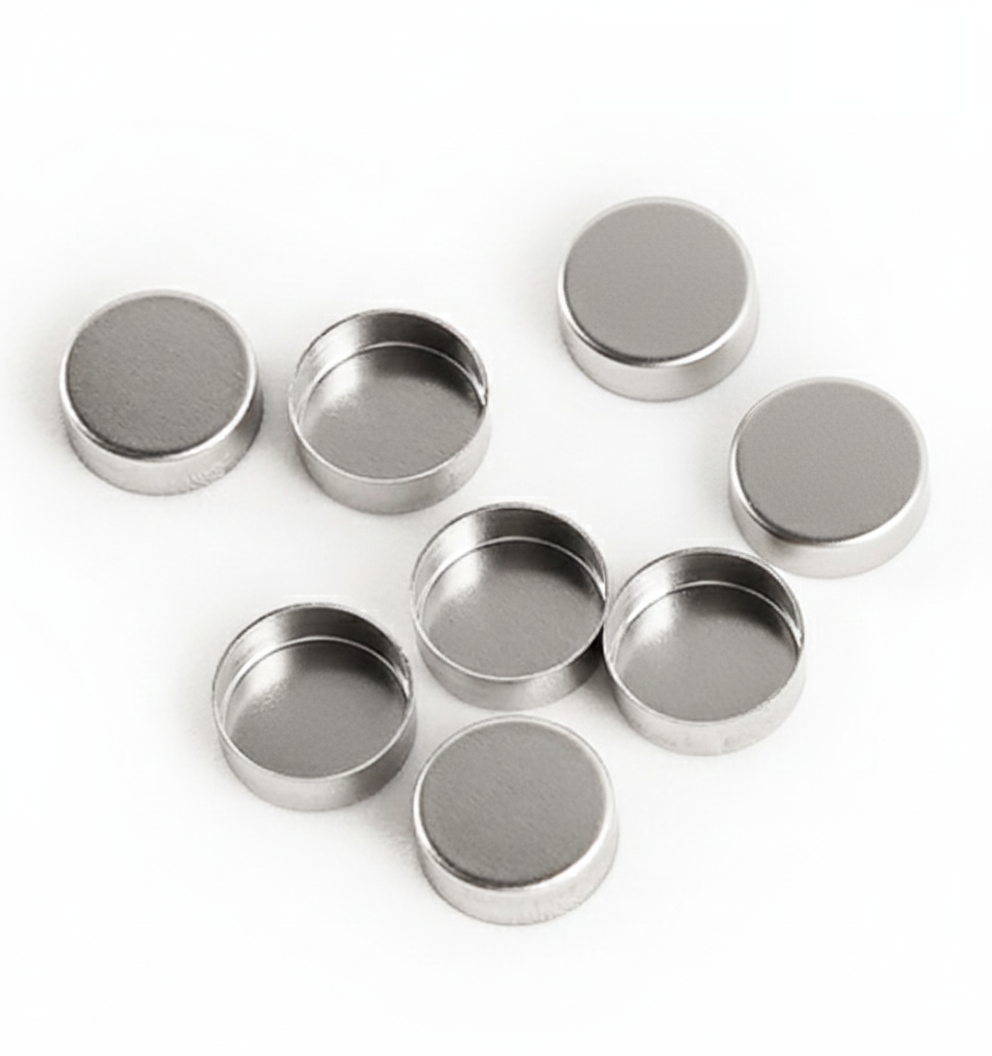

Detailed Dimensions (Positive Case):
* Outer Diameter: 6.25 ± 0.04 mm
* Inner Diameter: 5.95 ± 0.04 mm
* Height: 2.30 ± 0.05 mm
* Material Thickness: 0.15 mm

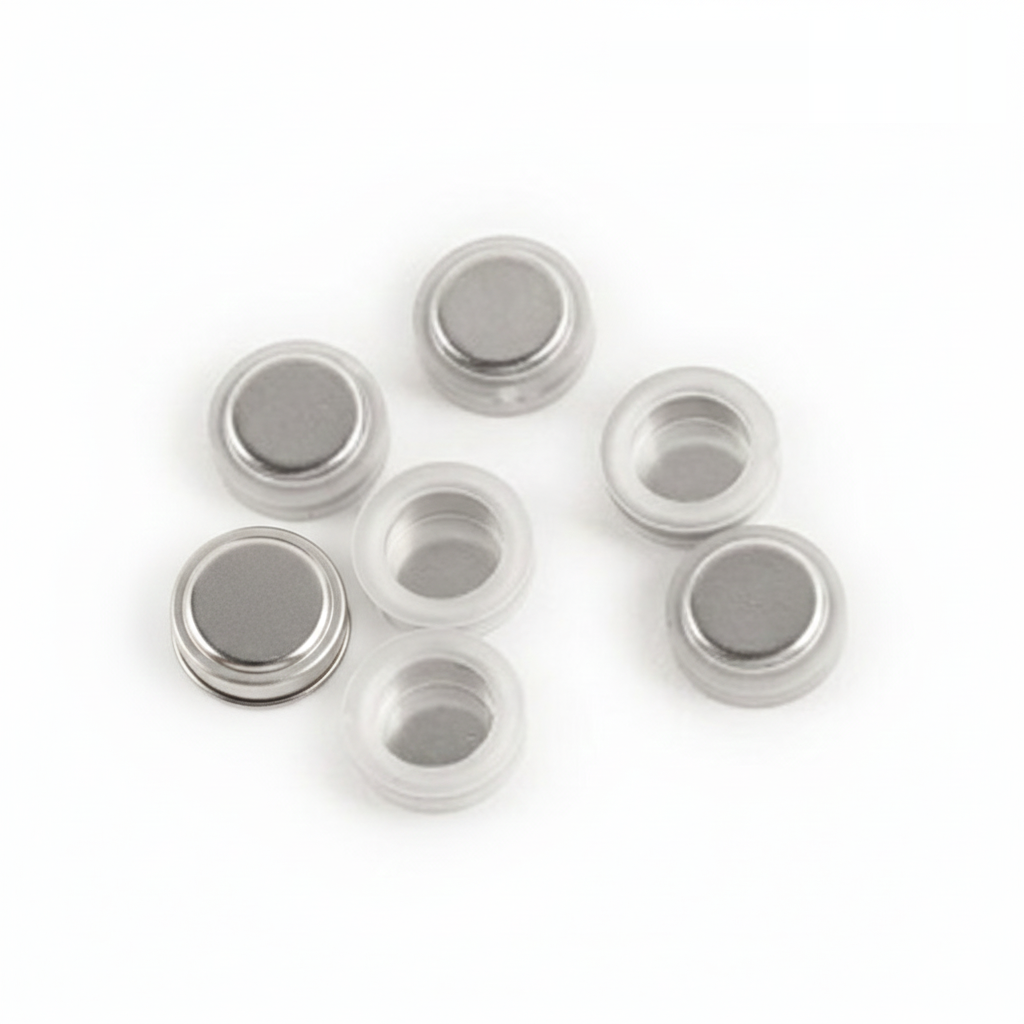

Detailed Dimensions (Negative Case):
* Flange Outer Diameter: 5.88 ± 0.04 mm
* Top Outer Diameter: 4.50 ± 0.04 mm
* Total Height: 1.70 ± 0.05 mm
* Material Thickness: 0.15 mm
