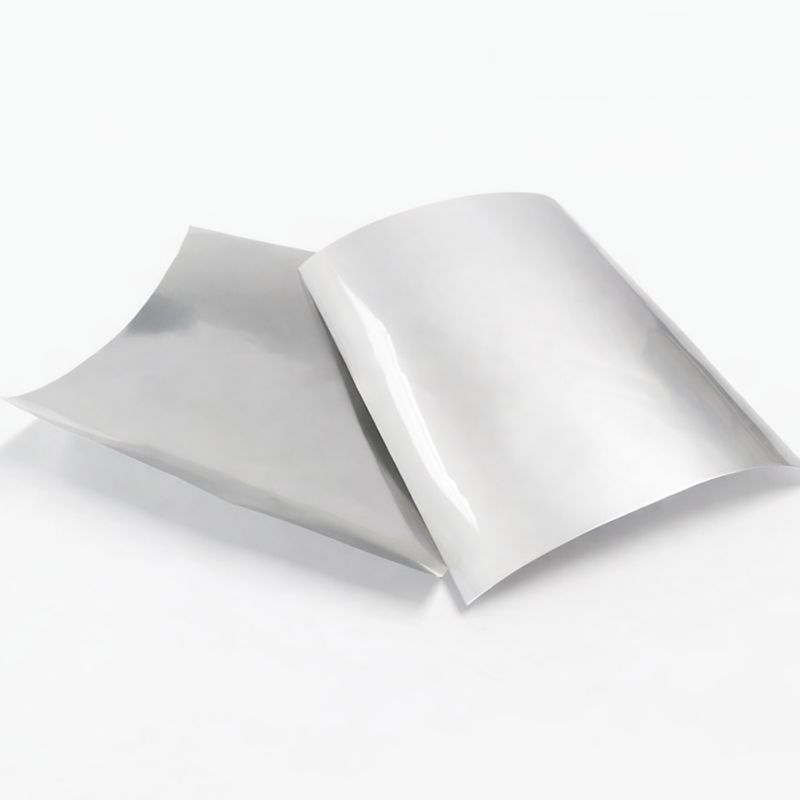

Name: Aluminum Laminated Film
SKU: AP-1
Availability: InStock

Aluminum Laminated Film

Free shipping on orders over $100

Satisfaction Guaranteed

High-Performance Aluminum Laminated Film (Shodex Material)

Overview:
This aluminum laminated film is specifically designed for pouch cell case applications, offering excellent electrical insulation and chemical resistance.
– Material: Shodex Aluminum Laminated Film.
– Surface Quality: Features a mat finish.
– Quality Standards: Strict inspection for pinholes (applicable aluminum foil standards), impurities (<=1 mm diameter), and fish eyes (<=2 mm clear, <=1 mm coloured). Key Specifications (Single-Sided Reference): Product Dimensions & Composition: – Thickness: 113 um – Width: 400 mm – Length: 7.5 m – Layer Structure: – Polyamide (JIS Z1714): 0.025 mm (+-0.0025 mm) – Adhesive (Polyester-polyurethane): 4-5 g/m^2 – Aluminum foil (JIS A8079, A8021): 0.040 mm (+-0.004 mm) – Adhesive (Urethane-free Adhesive): 2-3 g/m^2 – Polypropylene: 0.040 mm (+-0.004 mm) Technical Performance: – Molding Depth: >=5.0 mm
– Electrical Insulating: Good
– Hot Sealing Condition: 180-190deg C
– Moisture Vapor / O2 Transmission Rate: 200ppm / 5 years
– Laminate Strength:
– Nylon/Al: >2N/15 mm
– Al/CPP: >5N/15 mm
– Heat Seal Strength: >29.4N/15 mm (at 200deg C x 0.2Mpa x 2 sec)
– Solvent Retention: <5mg/m^2
– Slip Factor (CPP/CPP): <1.0

option

100 mm width x 160 mm length x 113 um thickness，10 sheets per pack, 115 mm width x 100 mm length x 113 um thickness，100 sheets per pack, 200 mm width x 120 mm length x 113 um thickness，10 sheets per pack, 210 mm width x 100 mm length x 113 um thickness，50 sheets per pack, 240 mm width x 200 mm length x 113 um thickness，10 sheets per pack, 400 mm width x 300 mm length x 113 um thickness，10 sheets per pack, 400 mm width x 500 mm length x 113 um thickness，10 sheets per pack
