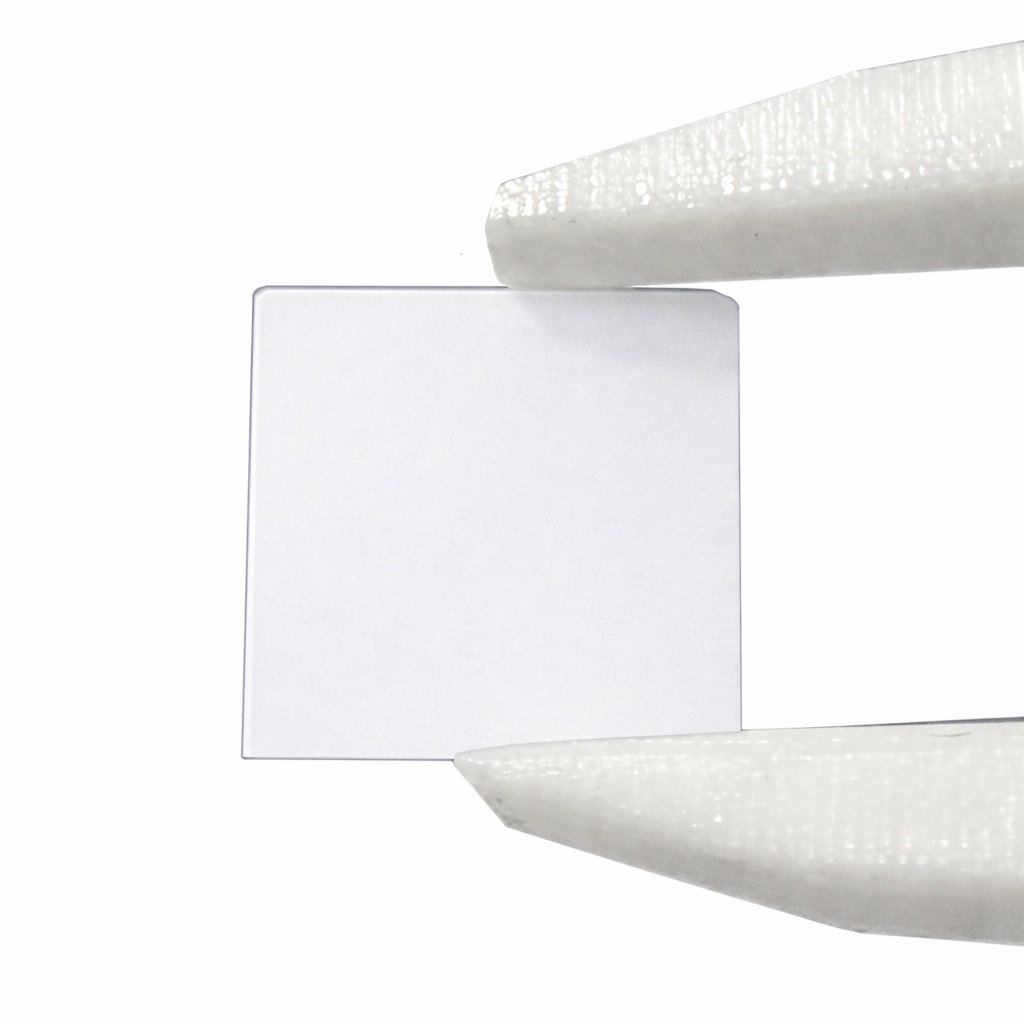

Barium Fluoride (BaF2) Single Crystal Substrate

Barium Fluoride (BaF2) Single Crystal Substrate

Application:
BaF2 is widely used as a scintillator material for high-energy physics due to its fast scintillation component. It is also an excellent optical window material for infrared (IR) and ultraviolet (UV) spectroscopy, and thermography, thanks to its wide transmission range.

Product Overview:
This product features high-quality Barium Fluoride (BaF2) single crystals grown via the Crucible Descent Method (Bridgman technique). It offers excellent transmission from vacuum ultraviolet (VUV) to infrared wavelengths and is characterized by its cubic structure and resistance to high-energy radiation.

Physical Properties:
– Material: Barium Fluoride (BaF2)
– Crystal Structure: Cubic
– Lattice Constant: a = 6.196 Angstrom
– Density: 4.88 g/cm^3
– Hardness: 3 (Mohs)
– Melting Point: 1368 °C
– Transmission Range: 150 ~ 13000 nm (0.15 – 13 μm)
– Growth Method: Crucible Descent Method (Bridgman)

Standard Substrate Specifications:
– Orientation: (100), (110), (111)
– Orientation Tolerance: miscut < 0.5° (High precision < 0.2° available)
– Standard Sizes: 5x5x1.0 mm; 10x10x1.0 mm
– Surface Polishing: Single-side / Double-side
– Surface Roughness (Ra): < 0.5 nm

Customization & Special Requests:
– Edge Orientation is available upon request.
– Custom sizes and thicknesses can be fabricated.
– For high-precision requirements (miscut < 0.2°), please specify when ordering.
