Bismuth Germanate (BGO, Bi3Ge4O12) Single Crystal Substrates

Bismuth Germanate (BGO) Single Crystal Substrates

Application:
BGO (Bi4Ge3O12) is a premier intrinsic scintillation material. Due to its high density and high atomic number, it has excellent stopping power for gamma rays, making it widely used in high-energy physics (HEP), Positron Emission Tomography (PET) scanners, and geological exploration.

Product Overview:

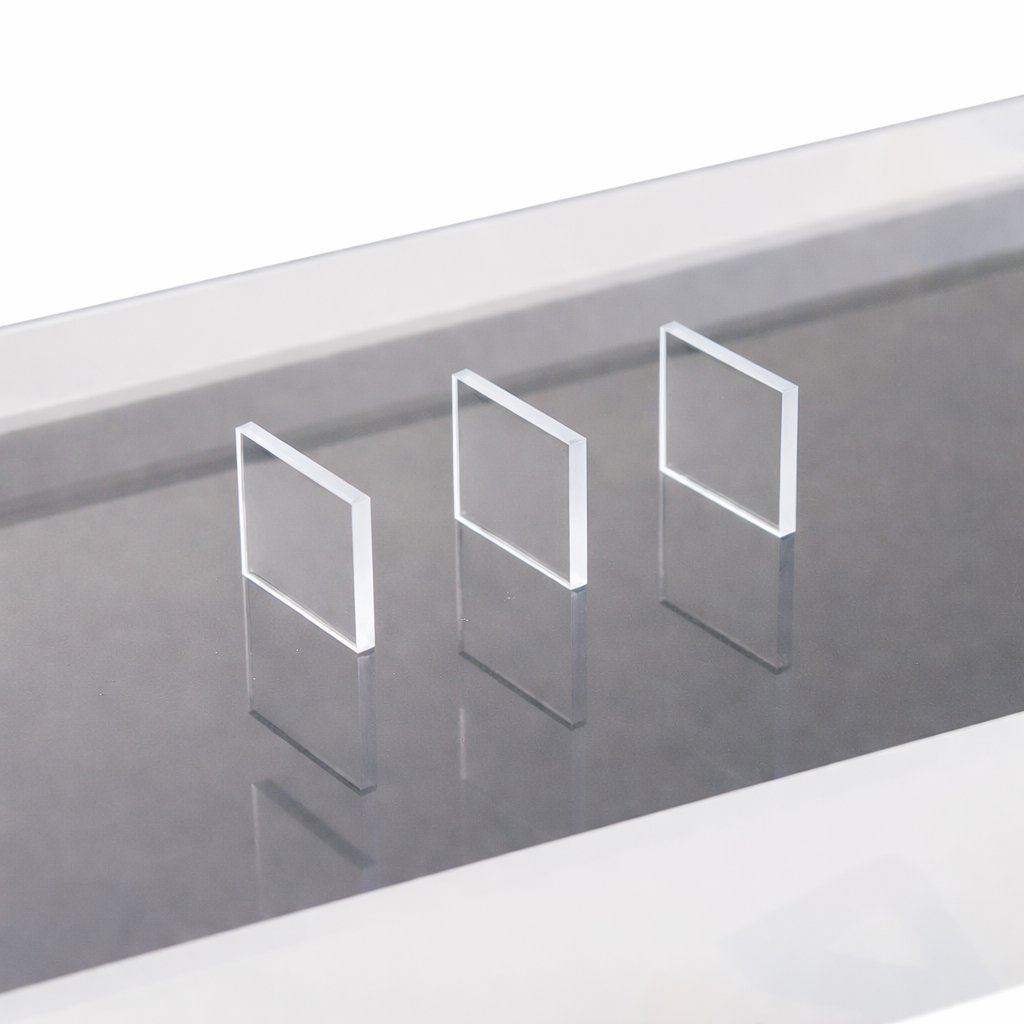

This product features high-quality Bismuth Germanate (BGO) single crystals grown via the Czochralski (CZ) method. It is a cubic oxide crystal known for being non-hygroscopic (stable in air), mechanically robust, and chemically stable.

Physical Properties:
– Material: Bismuth Germanate (Bi4Ge3O12)
– Crystal Structure: Cubic System
– Lattice Constant: a = 10.518 Angstrom
– Density: 7.13 g/cm^3
– Melting Point: 1050 °C
– Hardness: 5 (Mohs)
– Growth Method: Czochralski (CZ)

Standard Substrate Specifications:
– Orientation: (100) miscut < 0.5°
– Standard Size: 10 x 10 mm
– Standard Thickness: 0.5 mm
– Surface Polishing: Single-side / Double-side

Customization:
– Special specifications (sizes/thicknesses) are available upon request.
