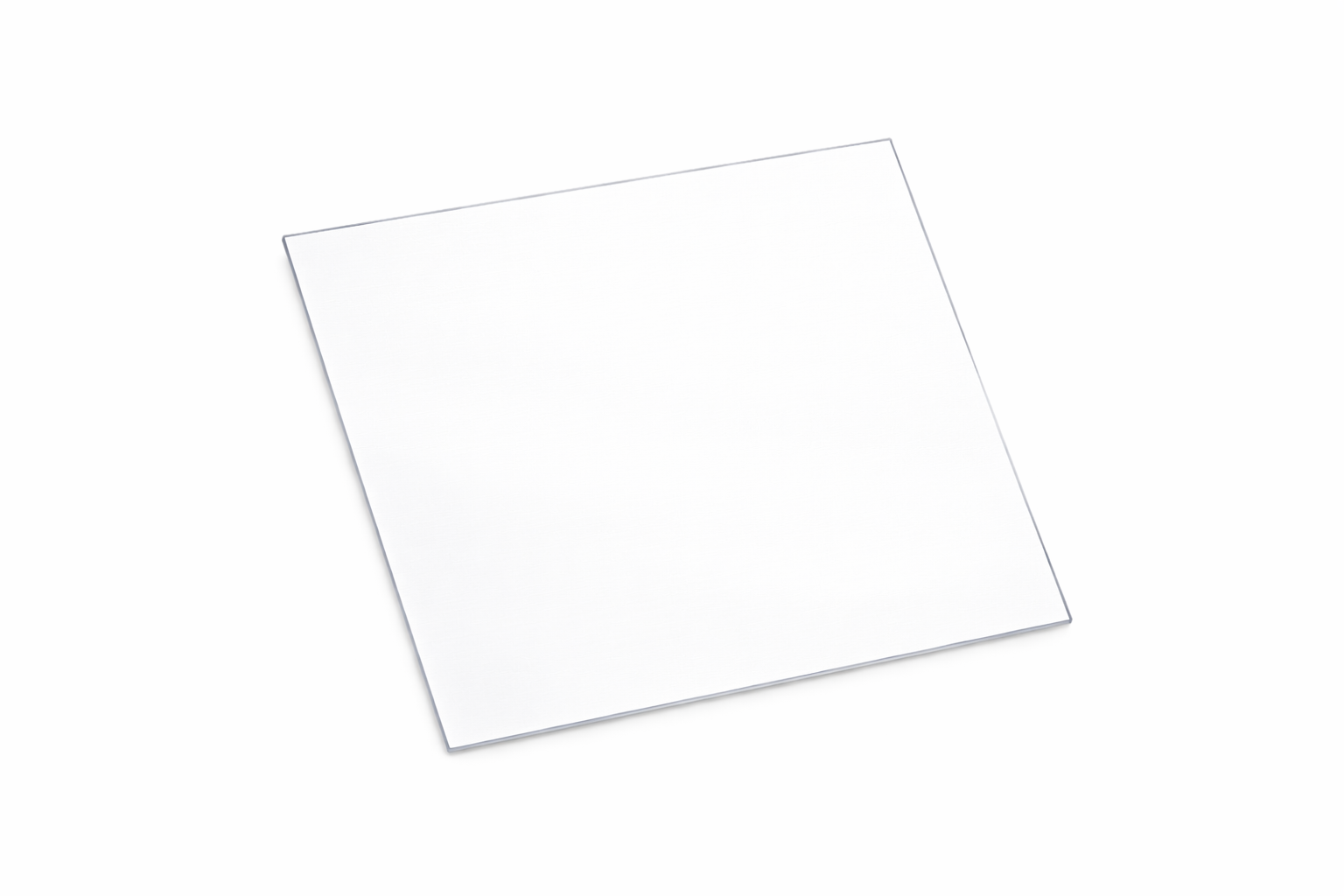

Diamond Single Crystal Substrate
Diamond

Diamond Single Crystal Substrate

Price range: $109.00 through $1,499.00

Free shipping on orders over $100

  • Check Mark Satisfaction Guaranteed

Diamond Single Crystal Substrate

Physical Properties:
– Preparation Method: CVD
– Nitrogen Content: < 50 ppm – Hardness (Microhardness): 80~150 GPa – Young’s Modulus: 1150~1300 GPa – Friction Coefficient: 0.05~0.05 – Thermal Expansion Coefficient: 1.0 x 10^-6 /K – Thermal Conductivity: 1500~2000 w/(m.K) – Optical Refractive Index: 1064 nm: 2.392 , 600 nm: 2.415 – Optical Transmittance (Thickness 1.0mm): 1064 nm: > 68% , 8um ~ 25um: > 70%

Standard Specifications:
– Orientation: <100>; <110>; <111>
– Dimensions: 5 x 5 x 0.5mm, 10 x 10 x 0.5 mm, 20 x 20 x 0.5 mm
– Surface Finish: Single-Side Polished / Double-Side Polished
– Surface Roughness (Ra): < 30 nm

option

10 × 10 × 0.1 mm，，Double-Side Polished, 10 × 10 × 0.5 mm，，Double-Side Polished, 10 × 10 × 0.5 mm，，Single-Side Polished, 15 × 15 × 0.5 mm，，Double-Side Polished, 20 × 20 × 0.5 mm，，Double-Side Polished, 20 × 20 × 0.5 mm，，Single-Side Polished, 3 × 3 × 0.1 mm，，Double-Side Polished, 3 × 3 × 0.1 mm，，Single-Side Polished, 3 × 3 × 0.1 mm，，Unpolished, 3 × 3 × 0.3 mm，，Double-Side Polished, 3 × 3 × 0.3 mm，，Single-Side Polished, 3 × 3 × 0.3 mm，，Unpolished, 5 × 5 × 0.3 mm，，Double-Side Polished, 5 × 5 × 0.3 mm，，Single-Side Polished, 5 × 5 × 0.3 mm，，Unpolished, 5 × 5 × 0.5 mm，，Double-Side Polished, 5 × 5 × 0.5 mm，，Single-Side Polished
