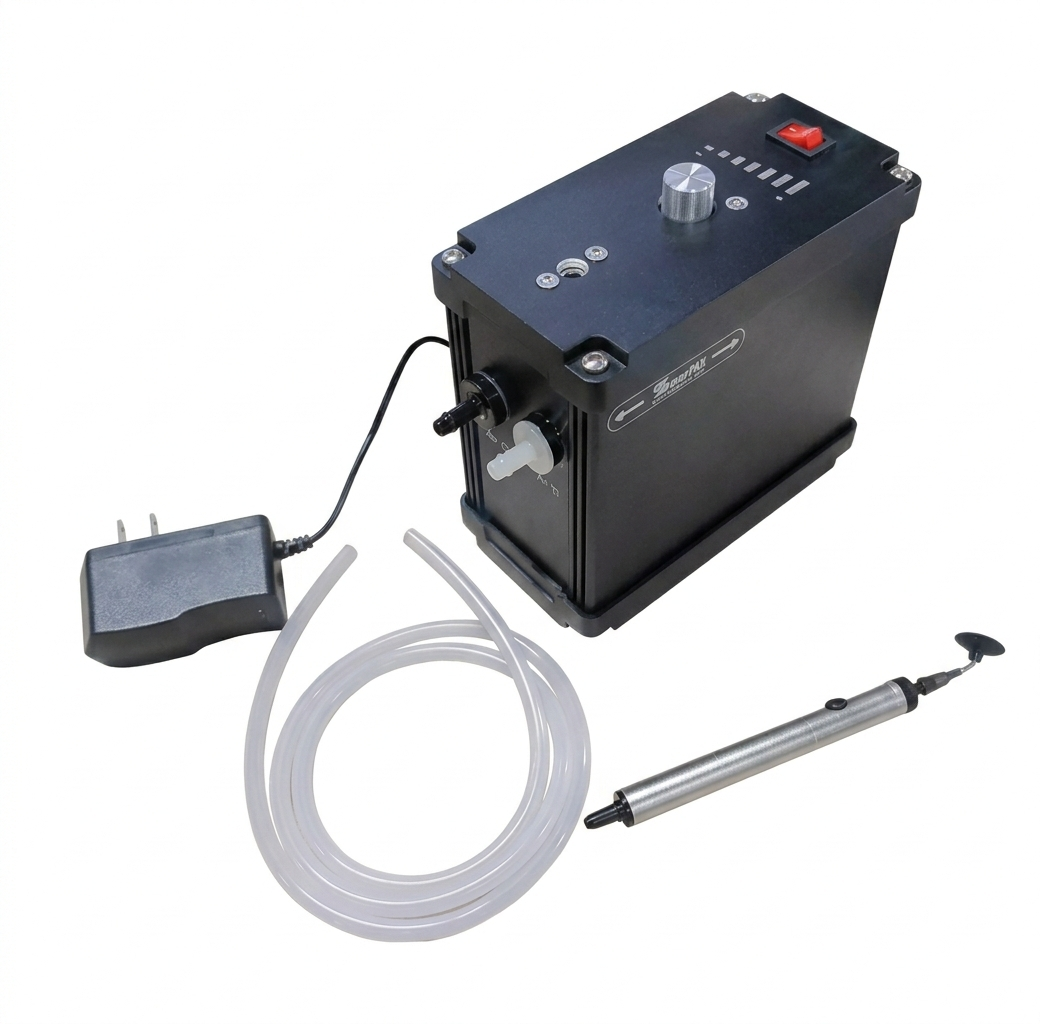

Electric Vacuum Suction Pen

V2.0 Electric Vacuum Suction Pen & Pick-and-Place Station

Application:
Flexible solution for small component assembly and handling of crystals, chips, wafers, optical parts, electronic components, and optoelectronic devices. The system replaces manual tweezers for delicate operations.

Key Features:
* Continuous & Stable Suction: Built-in powerful, low-noise vacuum pump provides continuous suction without the need for manual squeezing.
* Adjustable Power: Features a rotating knob to precisely adjust the suction force, accommodating components of different weights and sizes.
* High Capacity: Maximum suction force reaches 500g, capable of handling a wide range of component sizes.
* Ergonomic Operation: The aluminum pen body features a venting hole for intuitive control—cover with a finger to pick up, release to drop.
* ESD & Material Versatility: Supplied with two types of suction cup materials (Conductive Silicone and Rubber) to meet different handling requirements.
* Durable Construction: The main unit features a robust aluminum alloy shell that is durable and environmentally friendly.

Operating Instructions:
1. Connection: Insert one end of the silicone duct into the side hole of the main unit and the other end into the tail of the pen.
2. Assembly: Insert the probe (pinhead) into the pen head, then attach the desired suction cup (cupule) to the probe.
3. Power Up: Plug the power adapter into a 100V-240V outlet and connect the DC plug to the main unit. Turn on the power switch.
4. Handling: Hold the pen like a writing instrument. Block the venting hole with your index finger to pick up the component. Release your finger to drop it.
5. Adjustment: Use the rotating knob on the main unit to increase or decrease suction force based on the object’s weight.
(Note: Clean suction cups with alcohol and a soft cloth after use.)

Key Specifications (Single-Sided Reference):
Model: V2.0 Electric Vacuum Pen
Input Voltage: AC 100V-240V
Output Voltage: DC 12V
Max Suction Force: 500g
Main Unit Material: Aluminum Alloy
Pen Material: Aluminum
Suction Cup Sizes (Diameter): 3.4mm, 6.4mm, 12.5mm, 15mm, 16mm
Suction Cup Materials: Conductive Silicone, Rubber
System Components: Main Unit (Pump), Aluminum Pen, Silicone Duct, Power Adapter, Probes, Suction Cups
