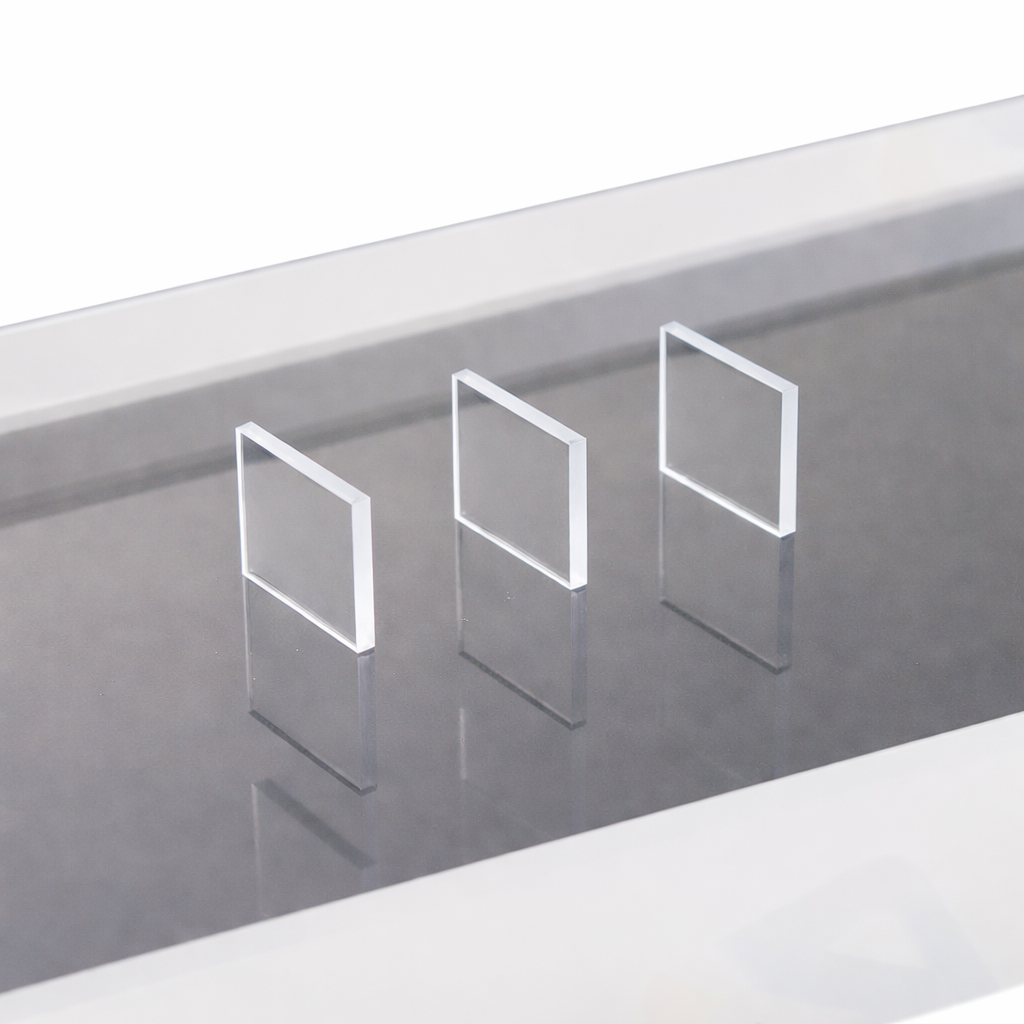

Gadolinium Gallium Garnet (Gd3Ga5O12, GGG) Single Crystal Substrate
GGG

Gadolinium Gallium Garnet (Gd3Ga5O12, GGG) Single Crystal Substrate

Price range: $95.00 through $309.00

Free shipping on orders over $100

  • Check Mark Satisfaction Guaranteed

Gadolinium Gallium Garnet (Gd3Ga5O12, GGG) Single Crystal Substrates

Physical Properties:
– Crystal Structure: Cubic System
– Lattice Constant: a=12.376Angstrom
– 2 theta: 51°07′
– Density: 7.09 g/cm^3
– Melting Point: 1750°C
– Mohs Hardness: 6.5 (Mohs)
– Growth Method: CZ

Standard Specifications:
– Orientation:
(111) miscut < 0.3° (Available <0.1°)
(110) miscut < 0.3° (Available <0.1°)
(100) miscut < 0.3° (Available <0.1°)
– Edge orientation: Available
– Dimensions: 5 x 5 x 0.5 mm, 10 x 10 x 0.5 mm, dia 2 inch x 0.5 mm (Only for 111 orientation products)
– Surface Finish: Single-Side Polished / Double-Side Polished
– Surface Roughness: Ra: < 0.5 nm

option

10 × 10 × 0.5 mm，，Double-Side Polished, 10 × 10 × 0.5 mm，，Single-Side Polished, 5 × 5 × 0.5 mm，，Double-Side Polished, 5 × 5 × 0.5 mm，，Single-Side Polished
