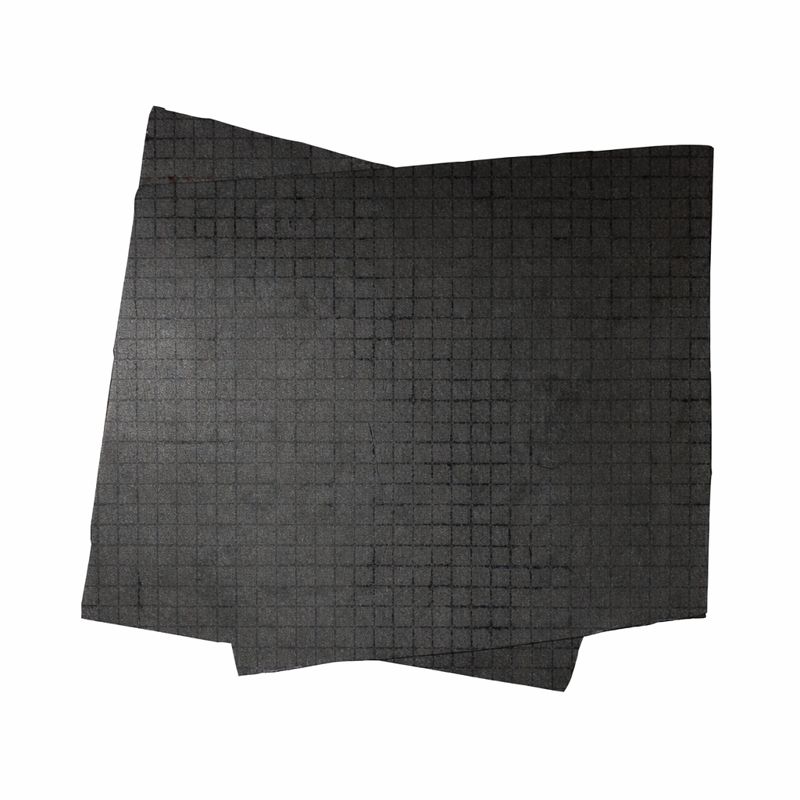

HCP020 Carbon Paper (Fuel Cell GDL Material)
Fuel Cell Materials

HCP020 Carbon Paper (Fuel Cell GDL Material)

$69.99

Free shipping on orders over $100

  • Check Mark Satisfaction Guaranteed

HCP020 Carbon Paper (Fuel Cell GDL Material)
Application: Gas Diffusion Layer (GDL) for Fuel Cells and Electrolyzers
Product Overview: This carbon paper is a high-performance Gas Diffusion Layer material, available in distinct hydrophilic (N) and hydrophobic (P) surface treatments to optimize water and gas transport within electrochemical cells.

Specifications by Model:
– HCP020N (Hydrophilic)
– Dimensions (L x W): 21 cm x 20 cm
– Thickness: 0.2 mm
– Porosity: 80%
– Areal Resistance: <= 11 mOhm-cm^2
– Air Permeability (Pressure Drop): < 11 mmH2O – Minimum Bending Radius: > 10 cm

– HCP020P (Hydrophobic)
– Dimensions (L x W): 21 cm x 20 cm
– Thickness: 0.2 mm
– Porosity: 75%
– Areal Resistance: <= 16 mOhm-cm^2
– Air Permeability (Pressure Drop): < 12 mmH2O – Minimum Bending Radius: > 10 cm

option

HCP020N (Hydrophilic)，21 cm x 20 cm x 0.2 mm T / 1 Sheet, HCP020P (Hydrophobic)，21 cm x 20 cm x 0.2 mm T / 1 Sheet
