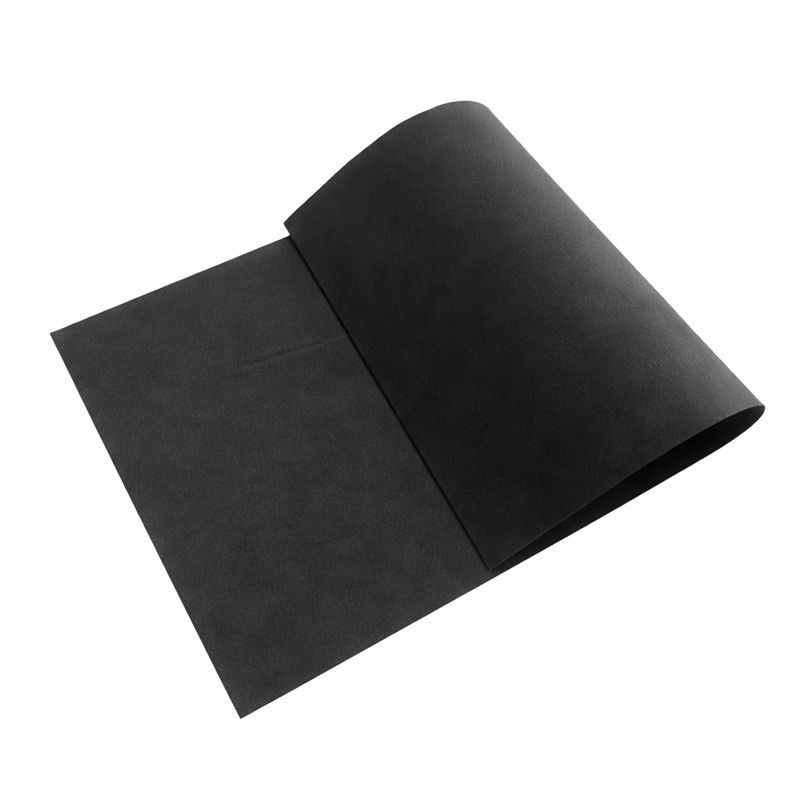

HCP331 Carbon Cloth (Fuel Cell GDL Material)
Current Collector

HCP331 Carbon Cloth (Fuel Cell GDL Material)

$129.99

Free shipping on orders over $100

  • Check Mark Satisfaction Guaranteed

HCP331 Carbon Cloth (Fuel Cell GDL Material)
Application: Gas Diffusion Layer (GDL) for Fuel Cells and Electrolyzers
Product Overview: This rigid grade carbon cloth is a high-performance Gas Diffusion Layer material, available in two variants: hydrophilic (N) for enhanced wetting and hydrophobic (P) for improved water management.

Key Specifications (Common):
Dimensions (L x W): 32 cm x 16 cm
Texture: Rigid Grade

Specifications by Model:
– HCP331N (Hydrophilic)
– Nominal Thickness: 0.3 mm
– Longitudinal Resistance: 0.11 x 10^-2 Ohm (Equivalent to 1.1 mOhm)
– Basis Weight: 150 – 190 g/m^2

– HCP331P (Hydrophobic)
– Nominal Thickness: 0.35 mm
– Longitudinal Resistance: 0.2 x 10^-2 mOhm-cm^2
– Basis Weight: 160 – 200 g/m^2 (Inferred Unit: g/m^2)

option

HCP331N，Hydrophilic，Rigid Grade，32 cm x 16 cm x 0.3 mm T，1 Sheet, HCP331P，Hydrophobic，Rigid Grade，32 cm x 16 cm x 0.35 mm T，1 Sheet
