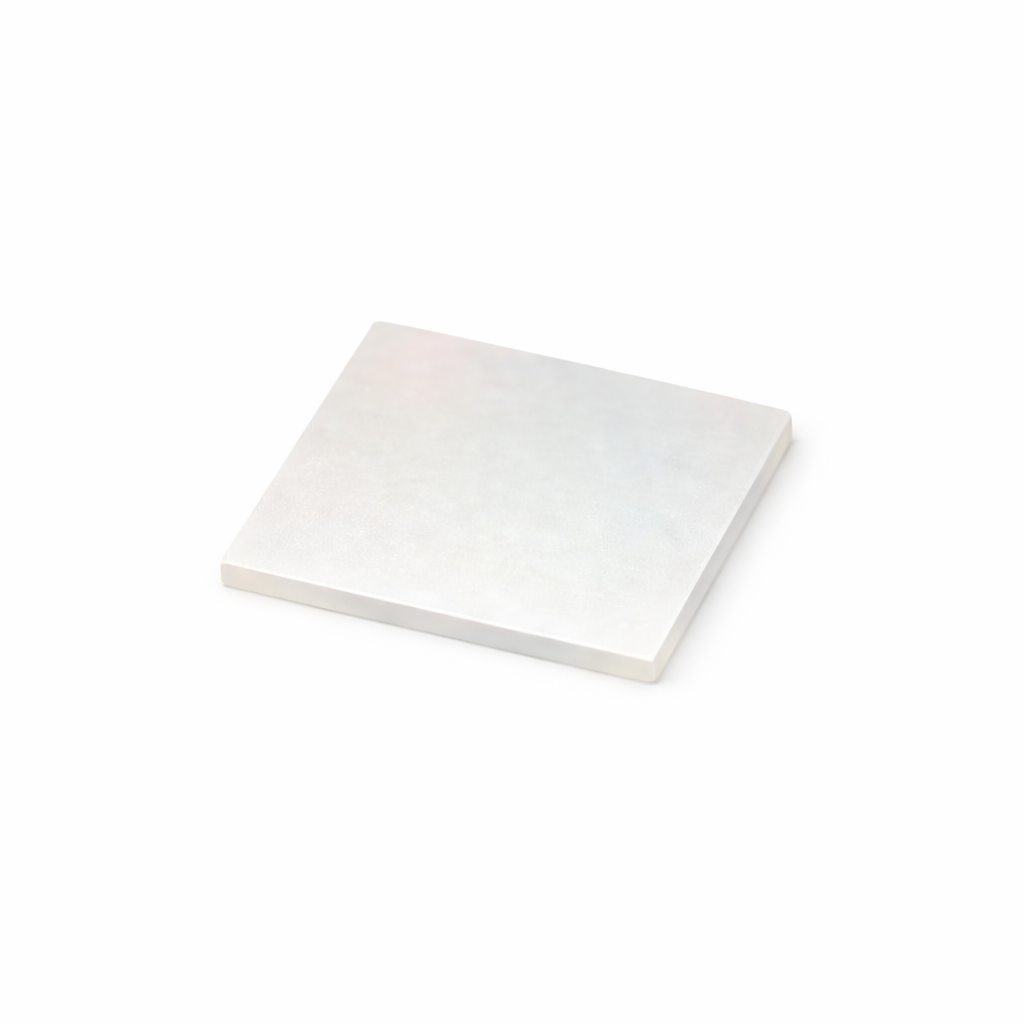

Lithium Niobate (LiNbO3) Single Crystal Substrate, 5 pcs/pack
LiNbO3

Lithium Niobate (LiNbO3) Single Crystal Substrate, 5 pcs/pack

$99.00

Free shipping on orders over $100

  • Check Mark Satisfaction Guaranteed

Standard Format: 10 × 10 × 0.5 mm square substrate, Y-cut / X-cut / Z-cut. Single-Side Polished (SSP) or Double-Side Polished (DSP). Sold as pack of 5 pcs.

Lithium Niobate (LiNbO3) Single Crystal Substrate

Product Overview:
Lithium Niobate (LiNbO3) is a ferroelectric material that exhibits excellent electro-optic, nonlinear optical, and piezoelectric properties. It is widely used in surface acoustic wave (SAW) filters, optical modulators, phase modulators, and optical frequency doublers.

Physical Properties:
– Crystal Structure: Trigonal System
– Lattice Constant: a = 5.148 Angstrom, c = 13.868 Angstrom
– Density: 4.64 g/cm^3
– Melting Point: 1250 °C
– Mohs Hardness: 5
– Curie Temperature: 1142 °C
– Growth Method: Czochralski (CZ)

Standard Specifications:
– Orientation Accuracy: miscut < 0.3°
– Surface Roughness: Ra < 0.5 nm
– Edge Orientation: Available upon request
– Surface Polish: Single-Side or Double-Side Polished

option

10 × 10 × 0.5 mm，128° Y-cut，Double -Side Polished, 10 × 10 × 0.5 mm，128° Y-cut，Single-Side Polished, 10 × 10 × 0.5 mm，36° Y-cut，Double -Side Polished, 10 × 10 × 0.5 mm，36° Y-cut，Single-Side Polished, 10 × 10 × 0.5 mm，41° Y-cut，Double -Side Polished, 10 × 10 × 0.5 mm，41° Y-cut，Single-Side Polished, 10 × 10 × 0.5 mm，64° Y-cut，Double -Side Polished, 10 × 10 × 0.5 mm，64° Y-cut，Single-Side Polished, 10 × 10 × 0.5 mm，Y-cut，Double-Side Polished, 10 × 10 × 0.5 mm，Y-cut，Single-Side Polished, 10 × 10 × 0.5 mm，Z-cut，Double-Side Polished, 10 × 10 × 0.5 mm，Z-cut，Single-Side Polished
