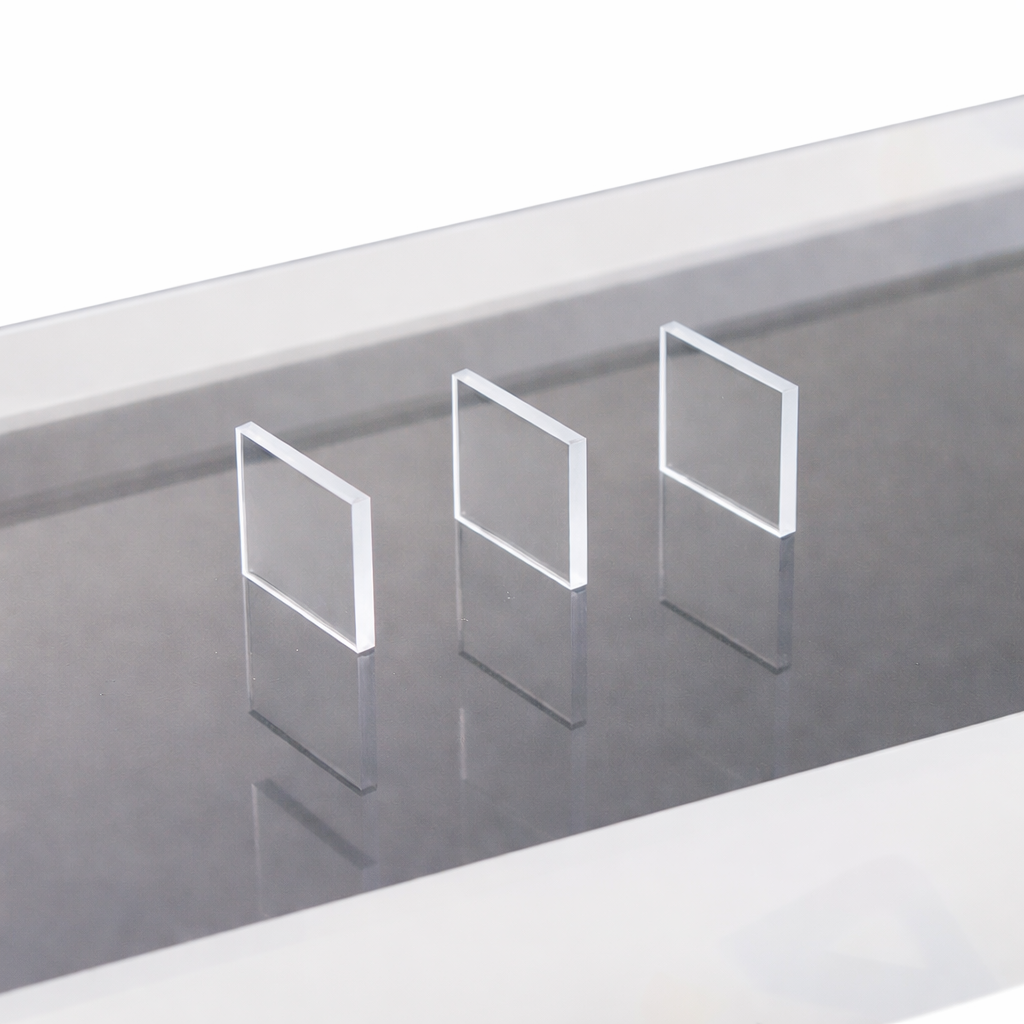

Magnesium Fluoride (MgF2) Single Crystal Substrates
MgF2

Magnesium Fluoride (MgF2) Single Crystal Substrates

Price range: $69.00 through $107.00

Free shipping on orders over $100

  • Check Mark Satisfaction Guaranteed

Magnesium Fluoride (MgF2) Single Crystal Substrates

Physical Properties:
– Crystal Structure: Tetragonal System
– Lattice Constant: a = 4.62 Angstrom, c = 3.04 Angstrom
– Density: 3.18 g/cm^3
– Melting Point: 1255 °C
– Mohs Hardness: 6
– Growth Method: Bridgman

Standard Specifications:
– Orientation Accuracy: miscut < 0.3° (High precision < 0.1° available upon request)
– Surface Roughness: Ra < 0.5 nm
– Edge Orientation: Available upon request
– Surface Polish: Single-Side or Double-Side Polished

option

10 × 10 × 0.5 mm，，Double-Side Polished, 10 × 10 × 0.5 mm，，Single-Side Polished, 5 × 5 × 0.5 mm，，Double-Side Polished, 5 × 5 × 0.5 mm，，Single-Side Polished
