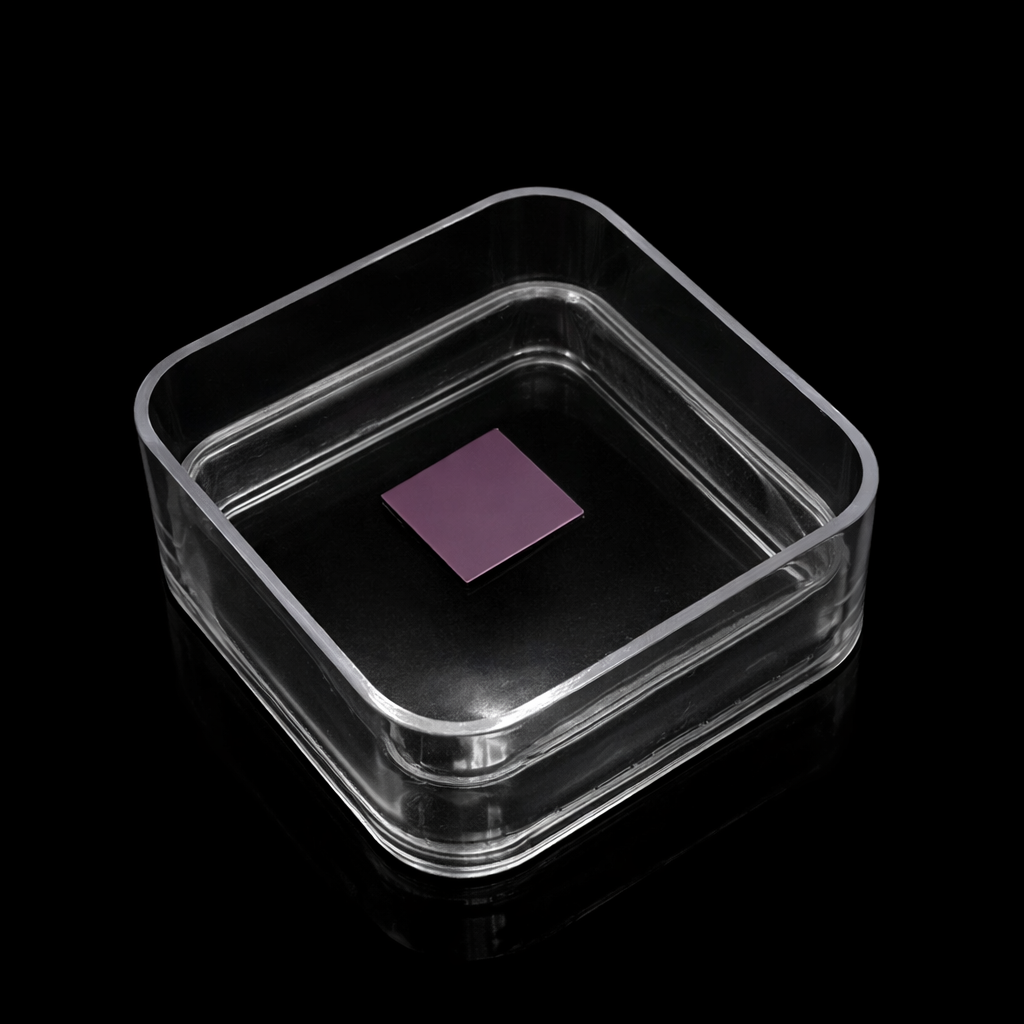

Neodymium Gallate (NdGaO3) Single Crystal Substrate
NdGaO3

Neodymium Gallate (NdGaO3) Single Crystal Substrate

Price range: $69.00 through $699.00

Free shipping on orders over $100

  • Check Mark Satisfaction Guaranteed

Neodymium Gallate (NdGaO3) Single Crystal Substrate

Physical Properties:
– Crystal Structure: Orthorhombic System
– Lattice Constants: a=5.167 Angstrom, b=5.314 Angstrom, c=7.353 Angstrom
(Angles: a(100) θ=17°20’; b(010) θ=16°52’; c(001) θ=12°04’)
– Density: 7.57 g/cm^3
– Melting Point: 1600 °C
– Hardness: 5.9 (Mohs)
– Growth Method: Czochralski (CZ)

Standard Specifications:

1. Orientation
– (110) miscut <0.3° (customizable <0.1°)
– (100) miscut <0.3° (customizable <0.1°)
– (001) miscut <0.3° (customizable <0.1°)
– (010) miscut <0.3° (customizable <0.1°)
– (111) miscut <0.3°

2. Edge Orientation
– Available

3. Surface Quality
– Surface Roughness: Ra < 0.5 nm
– Polish: Single-side polished / Double-side polished

option

10 × 10 × 0.5 mm，，Double-Side Polished, 10 × 10 × 0.5 mm，，Single-Side Polished, 10 × 5 × 0.5 mm，，Double-Side Polished, 10 × 5 × 0.5 mm，，Single-Side Polished, 15 × 15 × 0.5 mm，，Double-Side Polished, 15 × 15 × 0.5 mm，，Single-Side Polished, 5 × 3 × 0.5 mm，，Double-Side Polished, 5 × 3 × 0.5 mm，，Single-Side Polished, 5 × 5 × 0.5 mm，，Double-Side Polished, 5 × 5 × 0.5 mm，，Single-Side Polished
