Nickel and Nickel-Plated Copper Anode Tabs
Battery Consumables

Nickel and Nickel-Plated Copper Anode Tabs

$149.99

Free shipping on orders over $100

  • Check Mark Satisfaction Guaranteed

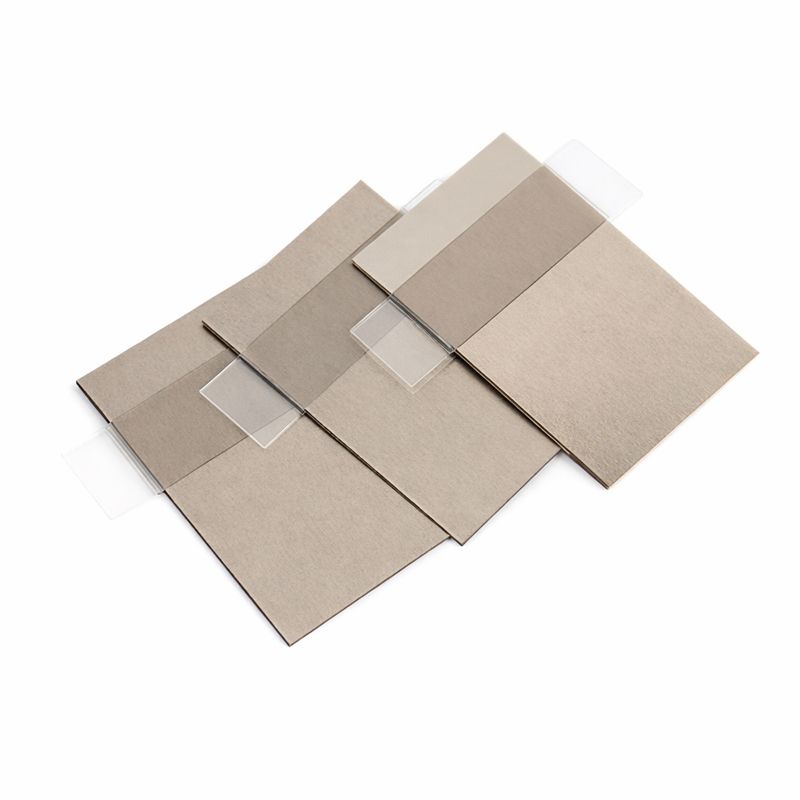

Product: Nickel and Nickel-Plated Copper Anode Tabs for Power Batteries
Application: Negative Terminal (Anode) for High-Power Pouch Lithium-ion Batteries
Product Overview: These anode tabs are designed for high-power applications, featuring high purity and robust mechanical properties. Available in pure Nickel or Nickel-Plated Copper configurations with specific adhesive sealants (DNP Black or White) to ensure reliable sealing and corrosion resistance.

Key Specifications (General):
Material Purity: >= 99.60%
Bending Performance: Withstands >= 7 cycles of 180deg bending.
Adhesion Performance: No shedding or corrosion after 4 hours immersion in 85deg C adhesion test solution.

Storage Requirements:
– Shelf Life: 12 months.
– Conditions: Long-term storage at room temperature (5deg C – 25deg C) and relative humidity <= 70%.

option

15 mm W * 0.1 mm T * 60 mm L / DNP Black Adhesive / 50 Pcs, 15 mm W * 0.15 mm T * 60 mm L / DNP Black Adhesive / 50 Pcs, 15 mm W * 0.2 mm T * 60 mm L / DNP Black Adhesive / 50 Pcs, 20 mm W * 0.2 mm T * 30 mm L / White Adhesive / 50 Pcs, 20 mm W * 0.2 mm T * 60 mm L / DNP Black Adhesive / 50 Pcs
