Perforated Aluminum Foil
Current Collector

Perforated Aluminum Foil

Price range: $149.99 through $209.99

Free shipping on orders over $100

  • Check Mark Satisfaction Guaranteed

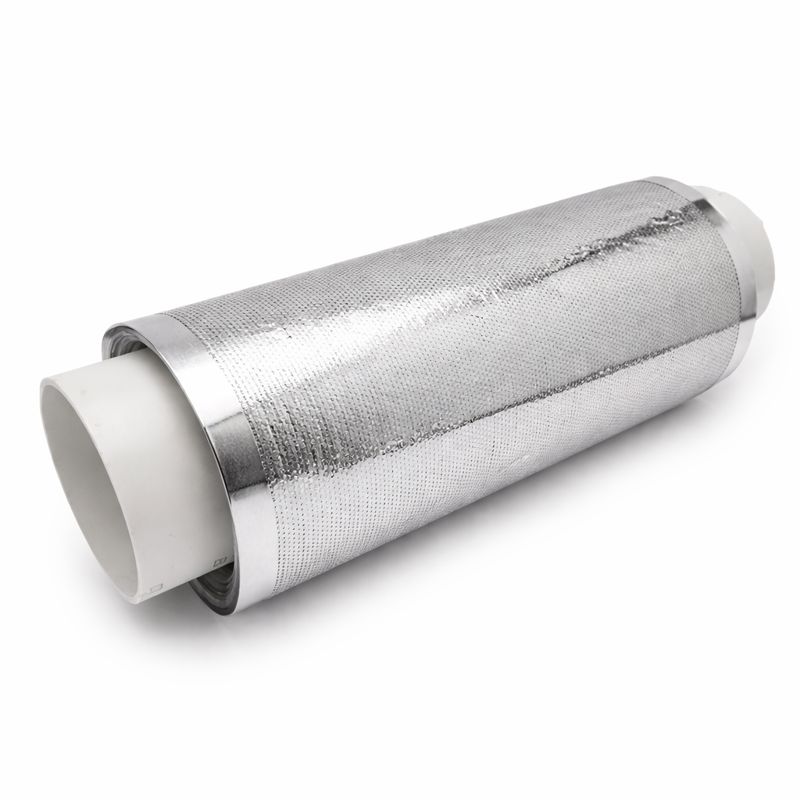

Perforated Aluminum Foil
Application: Current Collector Material for Lithium-ion Batteries
Product Overview: This Perforated Aluminum Foil serves as an innovative current collector designed for advanced lithium-ion battery architectures. The material is produced through a precise secondary mechanical processing step (perforation) applied to standard lithium battery-grade aluminum foil. This controlled mechanical patterning minimizes alteration to the intrinsic physical and chemical properties of the base aluminum foil, thereby optimizing its electrochemical performance.
Foil Thickness: 20 um
Total Foil Width: 265 ± 1 mm
Perforated Area Width: 237.18 mm
Perforation Diameter (Dia. ): 1.5 mm
Packaging Unit: Roll
Approximate Weight: 1-2 kg per roll

option

0.7 kg/roll, 0.8 kg/roll, 0.9 kg/roll, 1.0 kg/roll, 1.1 kg/roll, 1.6 kg/roll, 1.7 kg/roll
