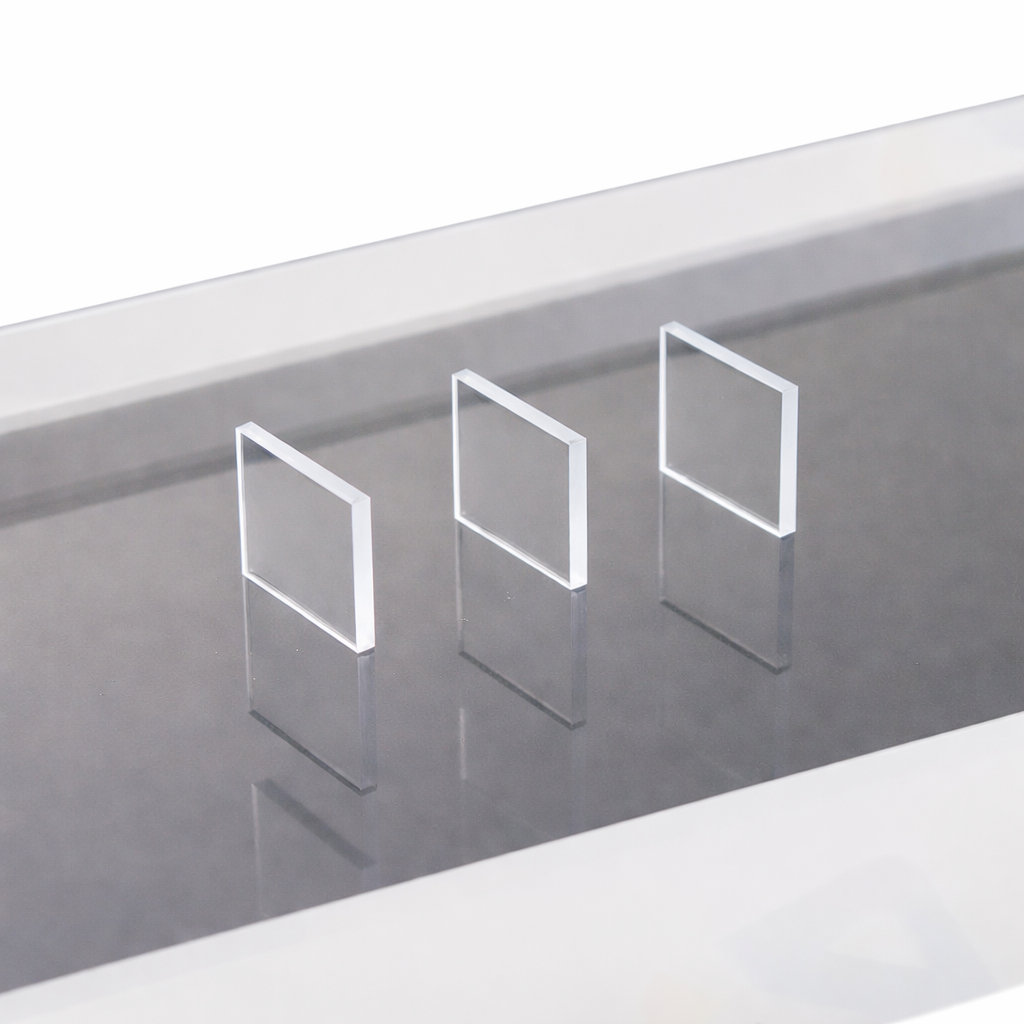

Potassium Chloride (KCl) Single Crystal Substrate
Price range: $91.00 through $155.00
Free shipping on orders over $100
- Satisfaction Guaranteed
Potassium Chloride (KCl) Single Crystal Substrate
Product Overview:
KCl is a water-soluble crystal material and is not suitable for long-term storage. Please note that because Chemical Mechanical Polishing (CMP) cannot be performed on this material, microscopic scratches may exist on the polished surface.
Physical Properties:
– Crystal Structure: Cubic System
– Lattice Constant: a = 6.291 Angstrom
– Density: 1.98 g/cm^3
– Purity: 99.9%
– Growth Method: Crystallization Method
Standard Specifications:
– Orientation Accuracy: miscut < 3.0°
– Surface Polish: Single-Side or Double-Side Polished
| option | 10 × 10 × 1 mm，，Double-Side Polished, 10 × 10 × 1 mm，，Single-Side Polished, 10 × 10 × 1.2 mm，，Single-Side Polished, 10 × 10 × 1.5 mm，，Single-Side Polished, 10 × 10 × 2 mm，，Double-Side Polished, 10 × 10 × 2 mm，，Single-Side Polished, 13 × 13 × 2 mm，，Double-Side Polished, 15 × 15 × 2 mm，，Double-Side Polished, 20 × 20 × 3 mm，，Double-Side Polished, 25 × 25 × 4 mm，，Double-Side Polished |
|---|
