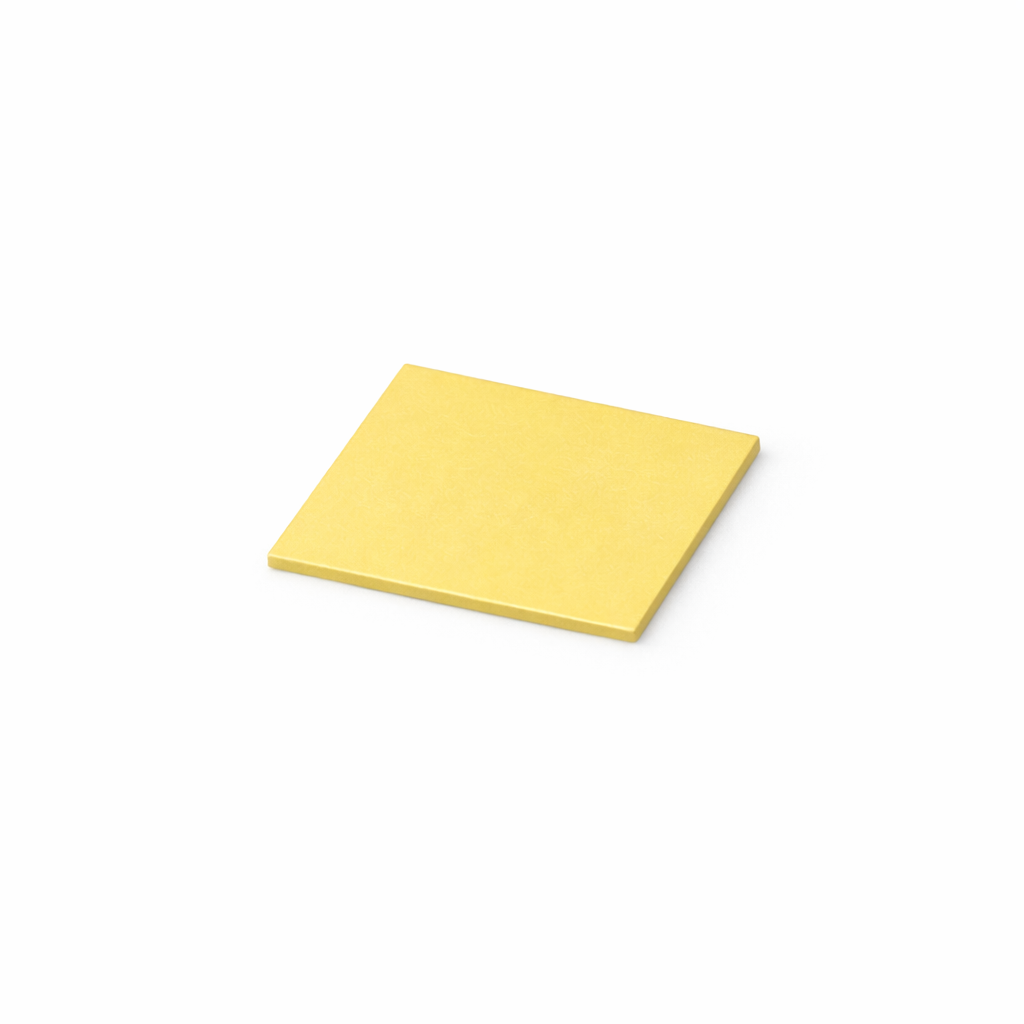

Samarium Scandate (SmScO3) Single Crystal Substrate
Price range: $279.00 through $499.00
Free shipping on orders over $100
- Satisfaction Guaranteed
Samarium Scandate (SmScO3) Single Crystal Substrate
Physical Properties:
– Crystal Structure: Orthorhombic System
– Lattice Constant: a=5.524 Angstrom, b=5.750 Angstrom, c=7.953 Angstrom
– Density: 6.22 g/cm^3
– Melting Point: 2167 °C
– Hardness: ~6 (Mohs)
– Growth Method: Czochralski (CZ)
Standard Specifications:
1. Orientation
– (110) miscut < 0.3° (customizable < 0.1°)
– (001) miscut < 0.3° (customizable < 0.1°)
– (100) miscut < 0.3° (customizable < 0.1°)
2. Edge Orientation
– Available
3. Surface Quality
– Surface Roughness: Ra < 0.5 nm
– Polish: Single-side polished / Double-side polished
| option | 10 × 10 × 0.5 mm，，Double-Side Polished, 10 × 10 × 0.5 mm，，Single-Side Polished, 5 × 5 × 0.5 mm，，Double-Side Polished, 5 × 5 × 0.5 mm，，Single-Side Polished |
|---|
