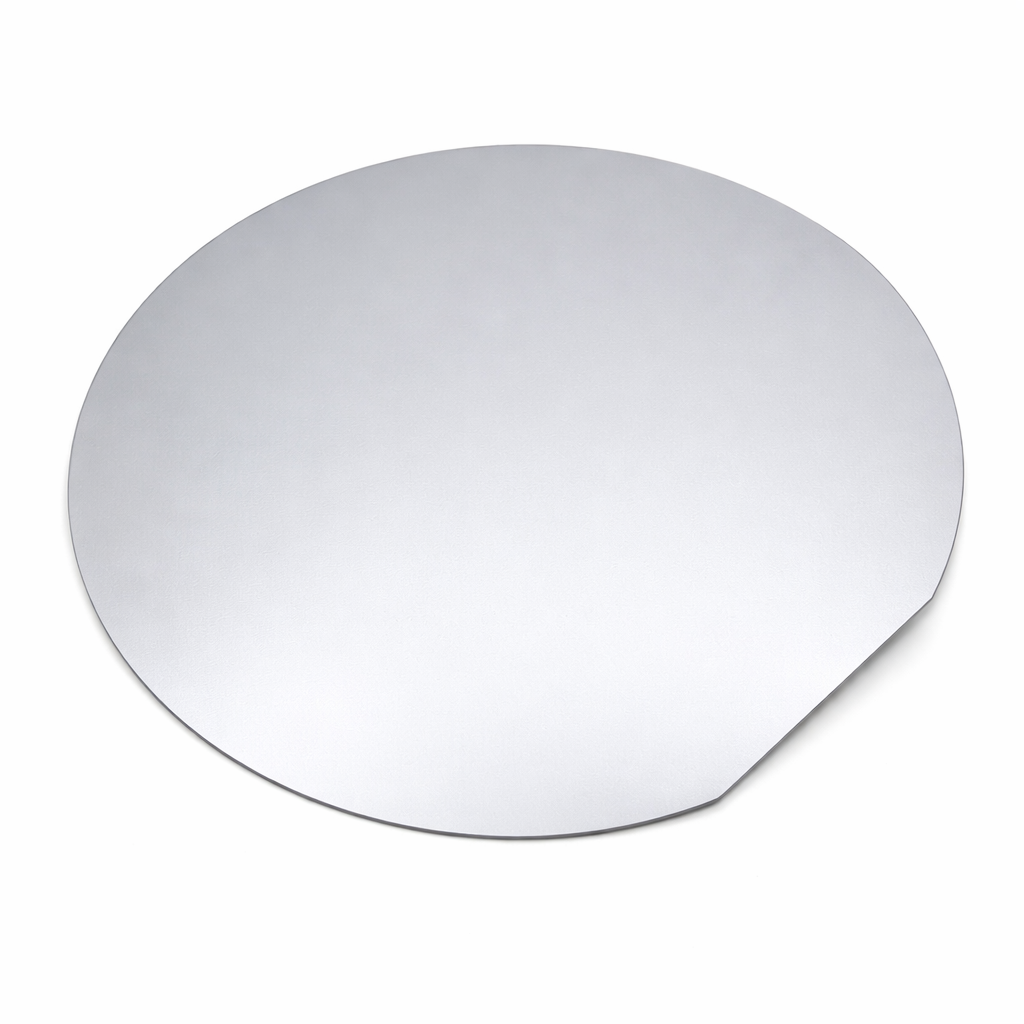

Silver-Coated Silicon Wafers (Ag/Cr on Si (100))
Ag-Coated Si

Silver-Coated Silicon Wafers (Ag/Cr on Si (100))

Price range: $159.00 through $589.00

Free shipping on orders over $100

  • Check Mark Satisfaction Guaranteed

Silver-Coated Silicon Wafers (Ag/Cr on Si (100))
Overview
Our silver-coated silicon wafers are fabricated using high-vacuum magnetron sputtering to ensure excellent film uniformity, high reflectivity, and clean surface morphology.

A thin chromium (Cr) adhesion layer (5 nm) is deposited between the silicon wafer and the silver film to provide strong interfacial bonding while maintaining optimal optical performance.

These wafers are ideal for optical research, plasmonic studies, SERS applications, and high-reflectivity device fabrication.

Layer Structure
Standard structure:
Ag (Silver layer)
Cr (5 nm adhesion layer)
Si (100) wafer

Silver Thickness Options
Standard Ag thickness:
100 nm Recommended
200 nm Recommended
500 nm
Custom thickness available upon request.

Adhesion Layer
Standard adhesion layer: Cr (5 nm)
This thickness provides sufficient adhesion while minimizing optical absorption, making it suitable for reflective and plasmonic applications.
Cr (10 nm) available upon request for enhanced adhesion requirements.

Wafer Specifications
Standard configuration:
Orientation: Si (100)
Doping: N-type, 1–10 Ω·cm resistivity
Surface finish: Single-side polished (SSP)
Custom substrate specifications available upon request.

Deposition Process
High-vacuum magnetron sputtering
Controlled thickness uniformity
Clean-room compatible handling
Each wafer is processed to maintain high surface quality and minimal contamination.

Applications
Optical reflectivity studies
Surface-enhanced Raman spectroscopy (SERS)
Plasmonics research
Photonic device fabrication
Mirror and reflective coating research
Micro/nano-structured silver platforms

Quality & Packaging
Uniform film thickness control
High surface cleanliness
Protective packaging to reduce oxidation exposure
Research-grade material quality

Why Choose Our Ag/Cr on Si Wafers?
High optical reflectivity
Optimized 5 nm Cr adhesion layer
Suitable for plasmonic and photonic research
Competitive direct-manufacturer pricing

Custom Orders
We support:
Custom wafer diameter
Custom silver thickness
Patterned silver wafers
Alternative adhesion layers
Contact us for academic pricing and technical consultation.

option

12″ Si | 100 nm Ag, 2″ Si | 100 nm Ag, 2″ Si | 200 nm Ag, 2″ Si | 500 nm Ag, 4″ Si | 100 nm Ag, 4″ Si | 200 nm Ag, 4″ Si | 500 nm Ag, 6″ Si | 100 nm Ag, 6″ Si | 200 nm Ag, 6″ Si | 500 nm Ag, 8″ Si | 100 nm Ag, 8″ Si | 200 nm Ag, 8″ Si | 500 nm Ag
