Stainless Steel Lab Jack, Scissor Lift Stand Platform
Price range: $13.99 through $29.99
Free shipping on orders over $100
- Satisfaction Guaranteed
Stainless Steel Lab Jack, Scissor Lift Stand Platform

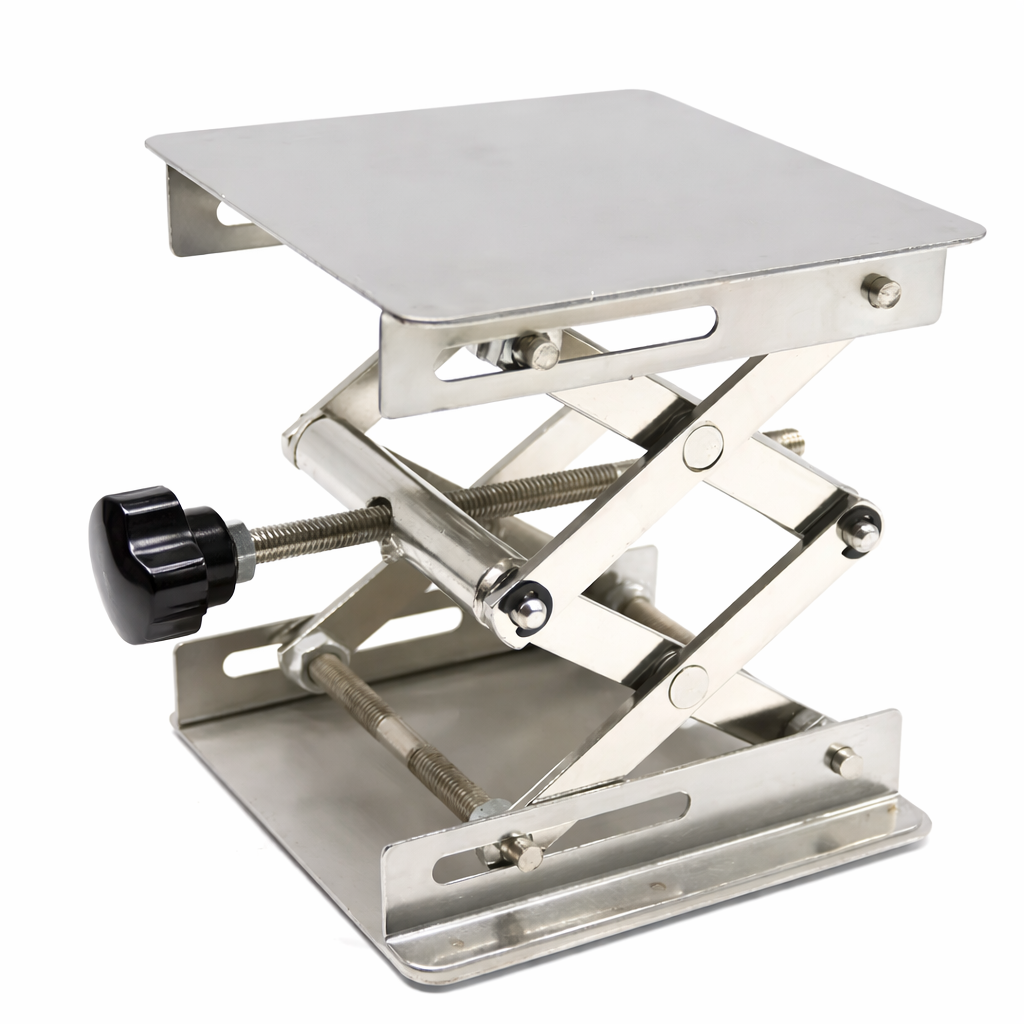

ZHC LAB’s Stainless Steel Lab Jacks provide stable, steplessly adjustable height support for hotplates, magnetic stirrers, flasks, water baths, optical equipment, and general laboratory instruments. The scissor-lift mechanism is operated with a single hand-wheel knob, allowing smooth, precise height adjustment across the full range without tools. Both the top and bottom platforms are stainless steel for corrosion resistance and easy cleaning; the scissor frame is galvanized steel for structural rigidity and long service life. Available in three platform sizes to accommodate different equipment footprints and load requirements. The Standard variant features a polished stainless steel top surface; the With Anti-Slip Mat variant adds a green silicone non-slip pad on the top platform to prevent glassware and equipment from sliding during use.
DIMENSIONAL SPECIFICATIONS:
4 x 4 inch (100 x 100 mm): height range 45-150 mm (1.8-5.9 inch); max load 5 kg (11 lbs); unit weight approx. 500 g
6 x 6 inch (150 x 150 mm): height range 75-260 mm (3.0-10.2 inch); max load 10 kg (22 lbs); unit weight approx. 1300 g
8 x 8 inch (200 x 200 mm): height range 85-280 mm (3.3-11.0 inch); max load 15 kg (33 lbs); unit weight approx. 1500 g
Top and base platform material: stainless steel
Scissor frame material: galvanized steel

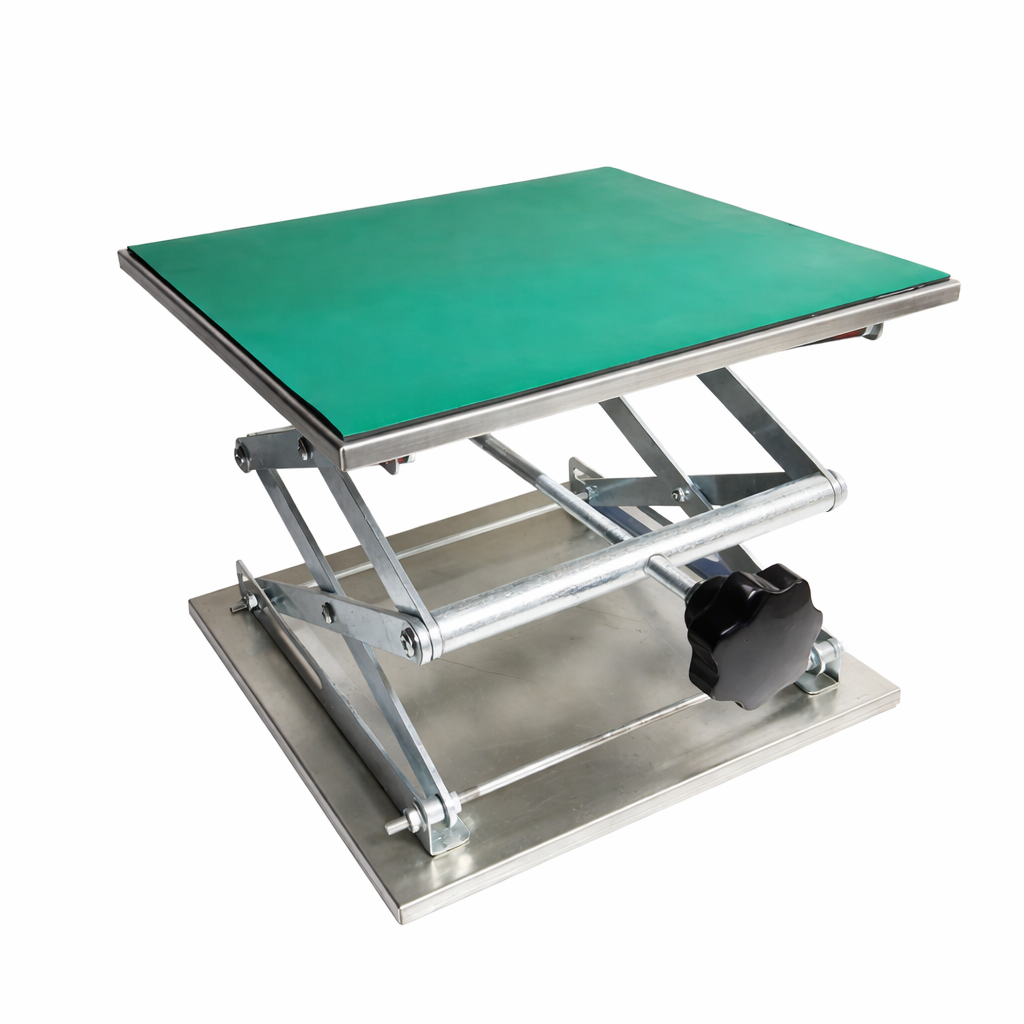

Anti-Slip Mat variant: green silicone non-slip pad on top platform surface
COMMON APPLICATIONS: Elevating hotplate stirrers and magnetic stirrers to working height; supporting round-bottom flasks, beakers, and reaction vessels during heating and stirring; adjusting the height of analytical instruments, optical components, and laser-level mounts; general bench-top height adjustment for ergonomic workflow in chemistry, biology, and physics laboratories; fume hood and cleanroom support applications.
USAGE NOTES: Always raise the lab jack to the desired height before placing equipment on it – loading heavy objects at minimum height makes subsequent adjustment difficult. Do not exceed the rated load capacity for each size. The hand-wheel knob provides smooth, continuous height adjustment; tighten firmly once the desired height is reached. Peel off the protective film from the platform surface before first use if present. Wipe clean with water or mild solvent after use; do not immerse. Store in a dry location.
| option | 4 x 4 inch (100 x 100 mm) / Standard, 4 x 4 inch (100 x 100 mm) / With Anti-Slip Mat, 6 x 6 inch (150 x 150 mm) / Standard, 6 x 6 inch (150 x 150 mm) / With Anti-Slip Mat, 8 x 8 inch (200 x 200 mm) / Standard, 8 x 8 inch (200 x 200 mm) / With Anti-Slip Mat |
|---|
