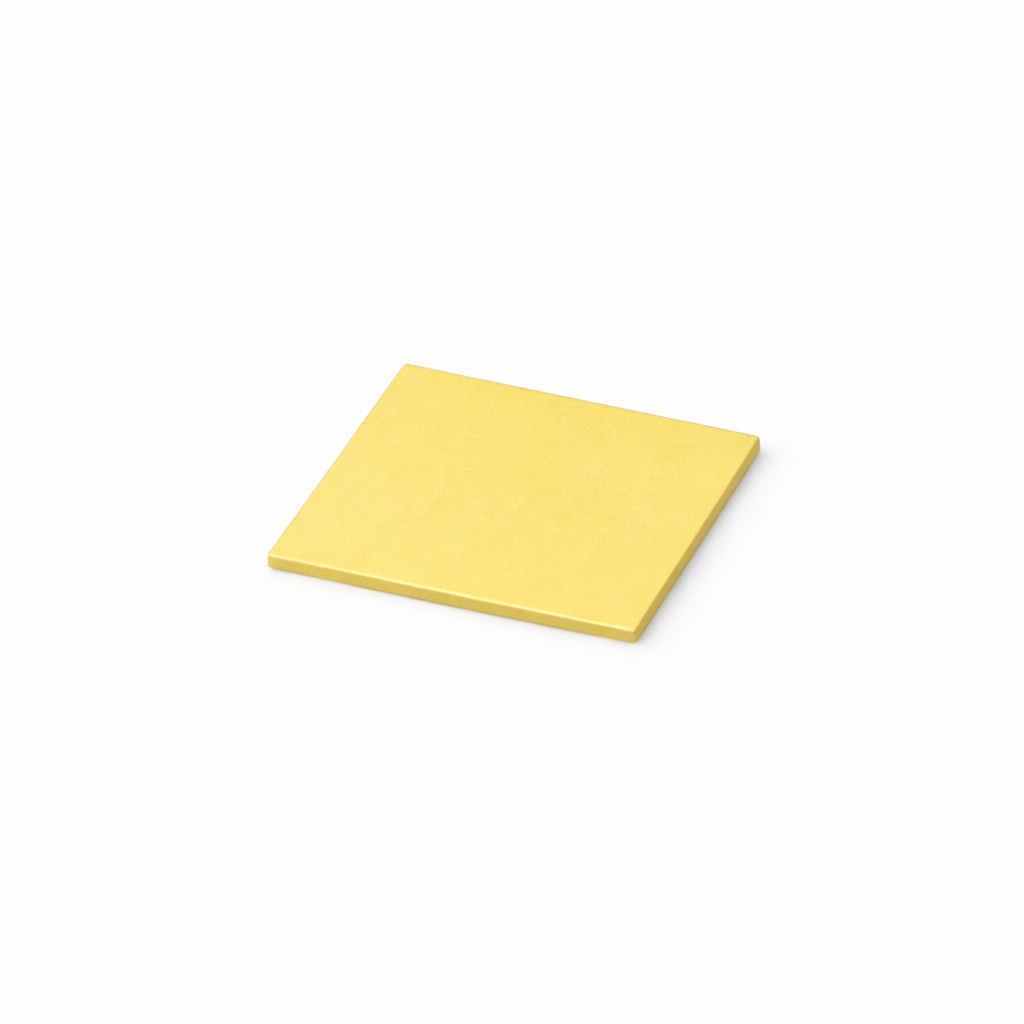

Strontium Lanthanum Aluminate (SrLaAlO4) Single Crystal Substrate
Price range: $105.00 through $249.00
Free shipping on orders over $100
- Satisfaction Guaranteed
Strontium Lanthanum Aluminate (SrLaAlO4) Single Crystal Substrate
Physical Properties:
– Crystal Structure: Tetragonal System
– Lattice Constants: a=3.756Angstrom , c=12.636Angstrom
– Melting Point: 1650 °C
– Density: 5.92 g/cm^3
– Hardness: 6~6.5 (Mohs)
– Growth Method: CZ
Standard Specifications:
1. Orientation
– (001) miscut < 0.3° (customizable < 0.1°)
– (100) miscut < 0.3° (customizable < 0.1°)
2. Edge Orientation
– Available
3. Surface Quality
– Surface Roughness: Ra : < 0.5 nm
– Polish: Single-side polished / Double-side polished
| option | 10 × 10 × 0.5 mm，，Double-Side Polished, 10 × 10 × 0.5 mm，，Single-Side Polished, 5 × 5 × 0.5 mm，，Double-Side Polished, 5 × 5 × 0.5 mm，，Single-Side Polished |
|---|
