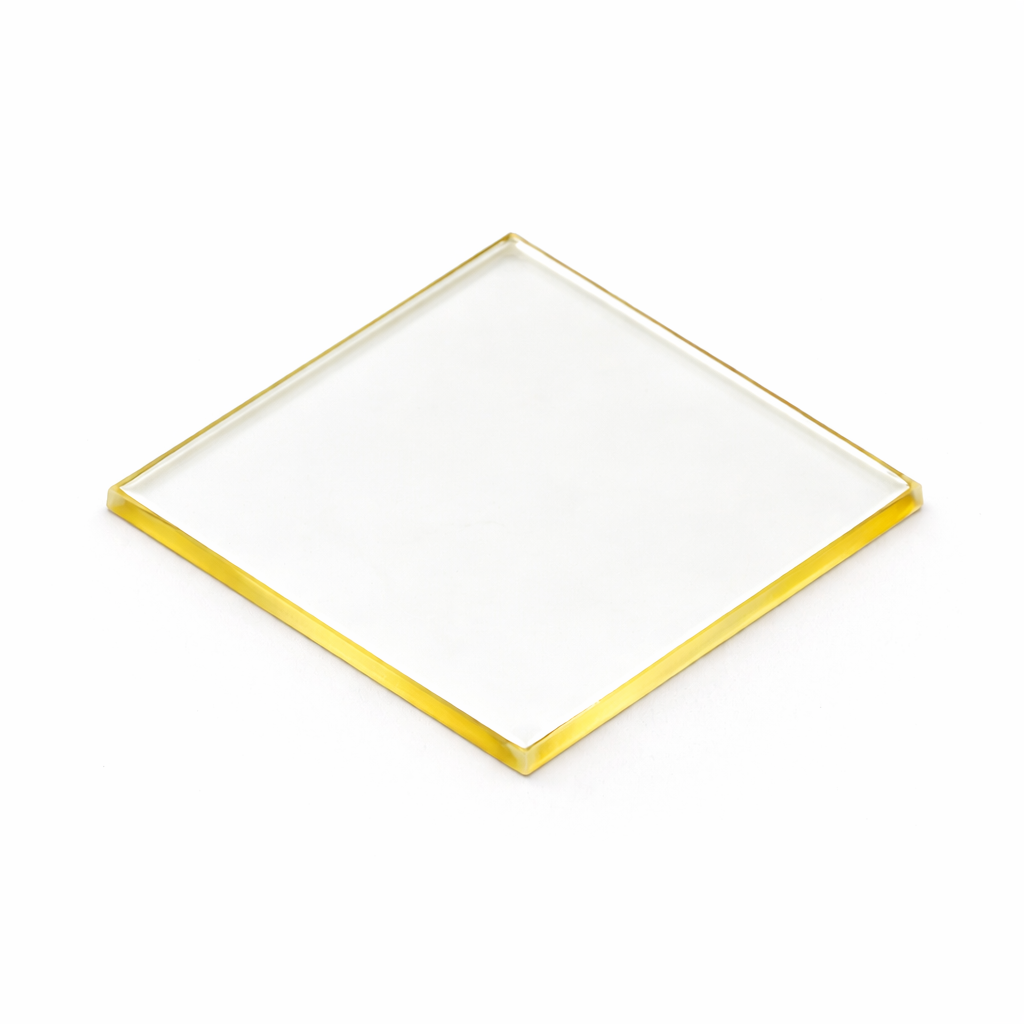

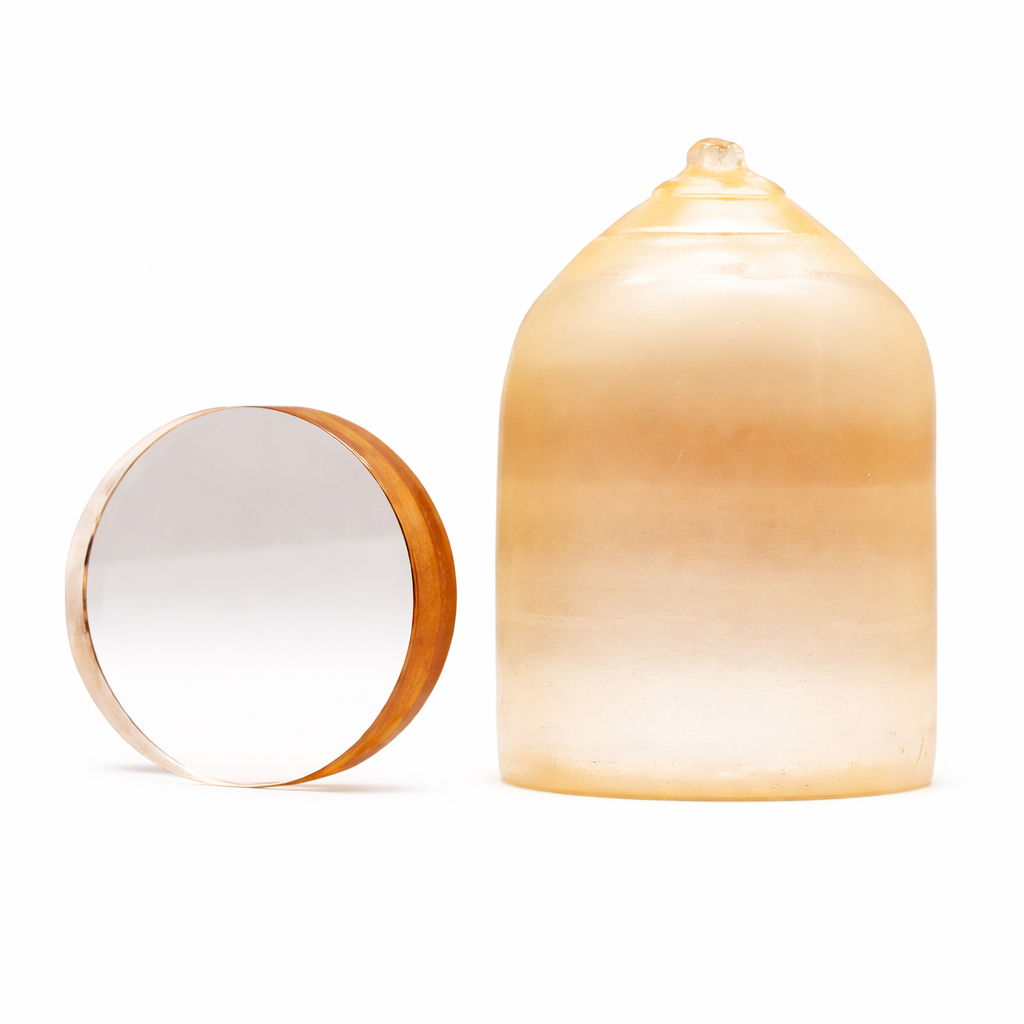

Terbium Gallium Garnet (TGG / Tb3Ga5O12) Single Crystal Substrate
Price range: $289.00 through $389.00
Free shipping on orders over $100
- Satisfaction Guaranteed
Terbium Gallium Garnet (TGG / Tb3Ga5O12) Single Crystal Substrate
Physical Properties:
Crystal Structure: Cubic System
Lattice Constant: a=12.355 Angstrom
Density: 7.13 g/cm^3
Mohs Hardness: 8 Mohs
Melting Point: 1725 degC
Transmittance Range: 400 ~ 1100 nm
Verdet Constant: 40 rad/T/m @1064nm
Growth Method: CZ
Standard Specifications:
Orientation: (111) miscut < 0.3 deg
Edge Orientation: Available
| option | 10 × 10 × 0.5 mm，，Double-Side Polished, 10 × 10 × 0.5 mm，，Single-Side Polished, 5 × 5 × 0.5 mm，，Double-Side Polished, 5 × 5 × 0.5 mm，，Single-Side Polished |
|---|
