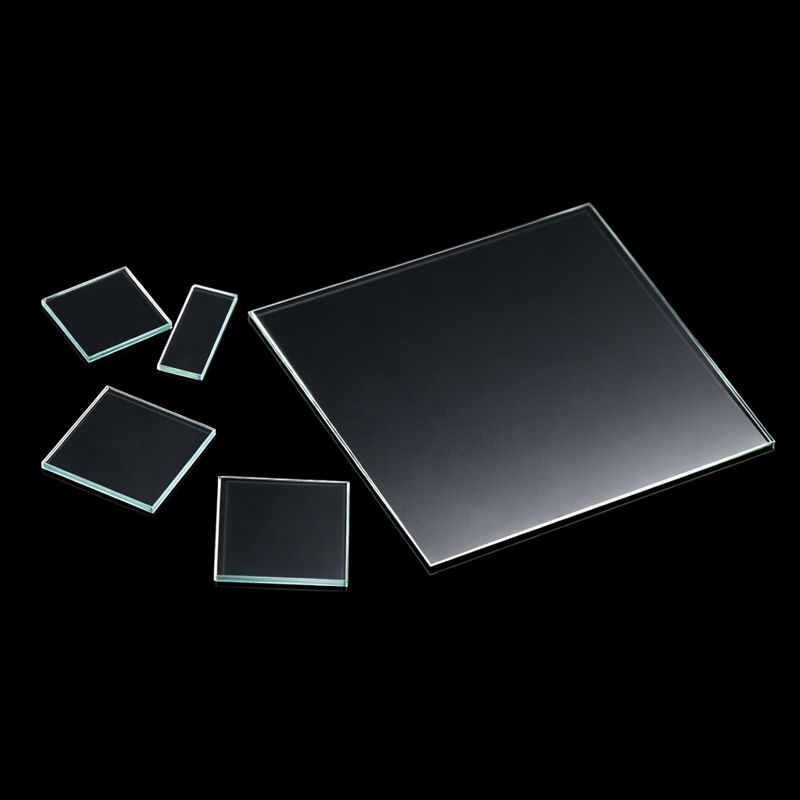

Yttria-Stabilized Zirconia (YSZ) Single Crystal Substrate
Price range: $32.00 through $89.00
Free shipping on orders over $100
- Satisfaction Guaranteed
Yttria-Stabilized Zirconia (YSZ) Single Crystal Substrate
Physical Properties:
Crystal Structure: Cubic System
Lattice Constant: a=5.125 Angstrom
Composition Ratio: Y2O3:ZrO2 = 8:92 mol%
Density: 5.8 g/cm^3
Melting Point: 2800 degC
Growth Method: Skull Melting
Standard Specifications:
Orientation: (100) miscut < 0.3 deg (Available < 0.1 deg)
Orientation: (110) miscut < 0.3 deg (Available < 0.1 deg)
Orientation: (111) miscut < 0.3 deg (Available < 0.1 deg)
Edge Orientation: Available
Surface Roughness: Ra: < 0.5 nm
| option | 10 × 10 × 0.2 mm，，Double-Side Polished, 10 × 10 × 0.5 mm，，Double-Side Polished, 10 × 10 × 0.5 mm，，Single-Side Polished, 5 × 5 × 0.5 mm，，Double-Side Polished, 5 × 5 × 0.5 mm，，Single-Side Polished, 6 × 6 × 0.5 mm，，Single-Side Polished |
|---|
