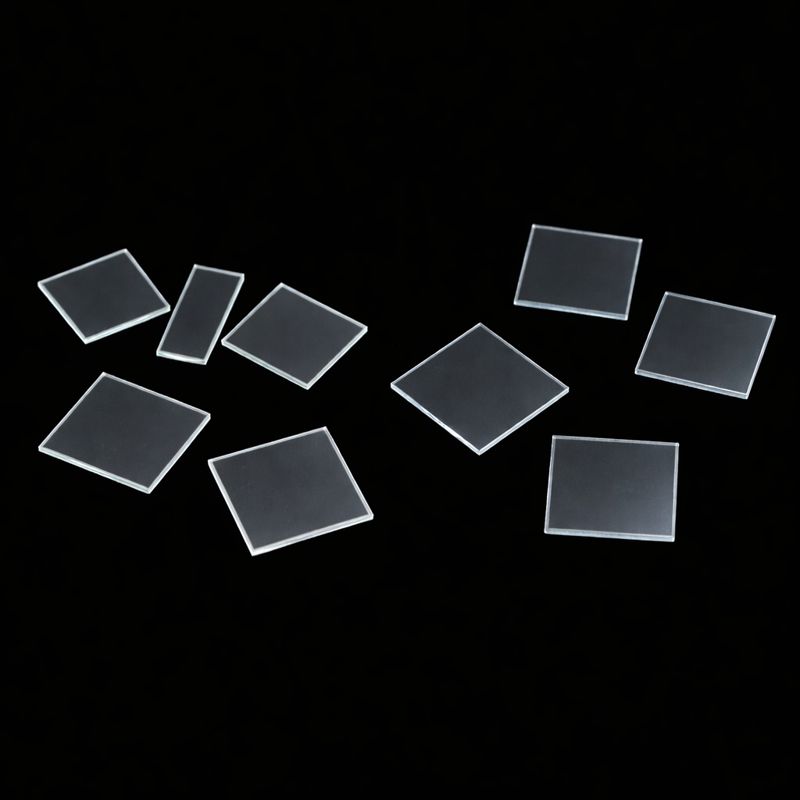

Yttrium Aluminum Perovskite (YAP / YAlO3) Single Crystal Substrate
YAP

Yttrium Aluminum Perovskite (YAP / YAlO3) Single Crystal Substrate

Price range: $95.00 through $159.00

Free shipping on orders over $100

  • Check Mark Satisfaction Guaranteed

Yttrium Aluminum Perovskite (YAP) Single Crystal Substrate

Physical Properties:
Crystal Structure: Orthorhombic System
Lattice Constants: a=5.167 Angstrom, b=5.314 Angstrom, c=7.353 Angstrom
Lattice Angle: a axis (100) theta=17 deg 20 min, b axis (010) theta=16 deg 52 min, c axis (001) theta=12 deg 04 min
Density: 4.88 g/cm^3
Melting Point: 1870 degC
Growth Method: CZ

Standard Specifications:
Orientation: (001) miscut < 0.3 deg
Orientation: (110) miscut < 0.3 deg
Orientation: (010) miscut < 0.3 deg
Orientation: (101) miscut < 0.3 deg
Orientation: (011) miscut < 0.3 deg
Orientation: (111) miscut < 0.3 deg
Edge Orientation: Available
Surface Roughness: Ra: < 0.5 nm

option

10 × 10 × 0.5 mm，，Double-Side Polished, 10 × 10 × 0.5 mm，，Single-Side Polished, 5 × 5 × 0.5 mm，，Double-Side Polished, 5 × 5 × 0.5 mm，，Single-Side Polished
