CR/LIR2032 Aluminum-Coated Coin Cell Case with XRD Kapton Window (5 Sets)
Battery Case

CR/LIR2032 Aluminum-Coated Coin Cell Case with XRD Kapton Window (5 Sets)

$75.99

Free shipping on orders over $100

  • Check Mark Satisfaction Guaranteed

CR/LIR2032 Aluminum-Coated Coin Cell Case with KAPTON Window for XRD (5 Sets/Pack)

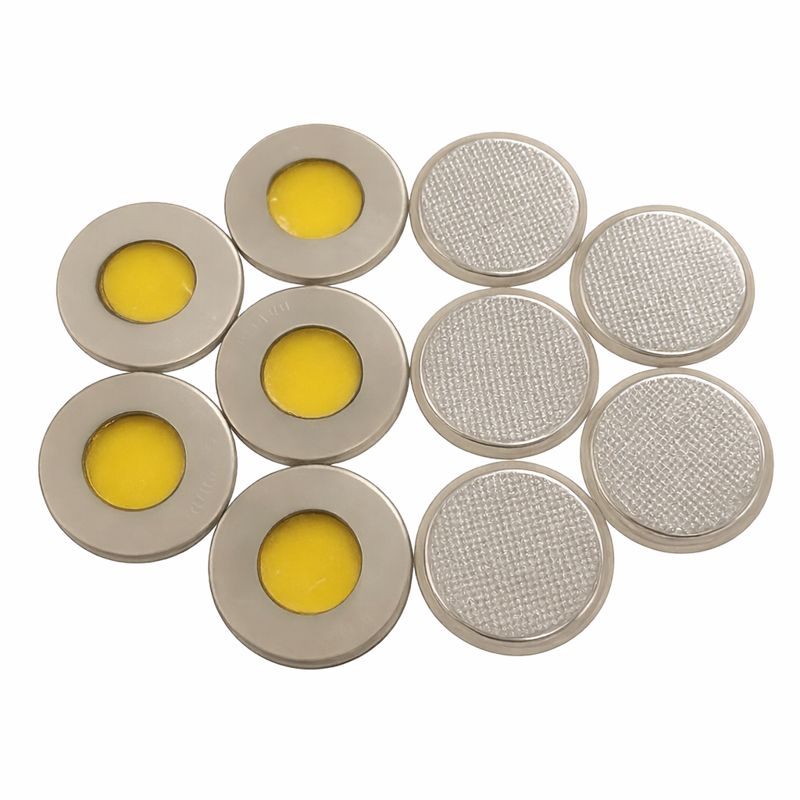

This CR/LIR2032 coin cell case is designed for X-ray diffraction (XRD) analysis and features a KAPTON observation window on the aluminum-plated positive cover, enabling direct X-ray transmission for material characterization. The case supports a finished battery size of 20 mm in diameter and 3.2 mm in height, and is supplied in 5 sets per pack.

The KAPTON window has a 10 mm diameter, offering a stable and X-ray-transparent region suitable for monitoring changes in electrode materials during testing. The positive cover is plated with 99.9% pure aluminum, with a coating thickness of approximately 1 um, ensuring compatibility with electrochemical environments and minimizing background scattering during XRD measurements.

For optimal testing performance, the use of synchronized radiation is recommended.

option

Aluminum-Coated Positive Cover with KAPTON Window / Standard Negative Cover / 5 Sets per Pack
