AG3 Micro Coin Cell Case (100 Sets/Pack)

AG3 Micro Coin Cell Case / Battery Shell (304 SS)

Application:
Designed for the research and assembly of miniature AG3 button cell batteries. Suitable for laboratory use and small-scale battery manufacturing.

Key Features:
* Split Structure Design: Unlike integrated models, this case features a 3-piece separated design consisting of a positive case, a negative case, and a separate sealing ring.
* Material Composition: The metal cases are manufactured from 304 Stainless Steel, while the sealing ring is made from Nylon 66 for reliable insulation and sealing.
* Complete Kit: Each set includes all three necessary components (Positive Can, Negative Cap, Gasket) for a complete assembly.

Key Specifications:
Model: AG3
Case Material: 304 Stainless Steel
Sealing Ring Material: Nylon 66
Structure: 3-Piece Set (Separated Ring)
Packaging Unit: 100 Sets/Pack

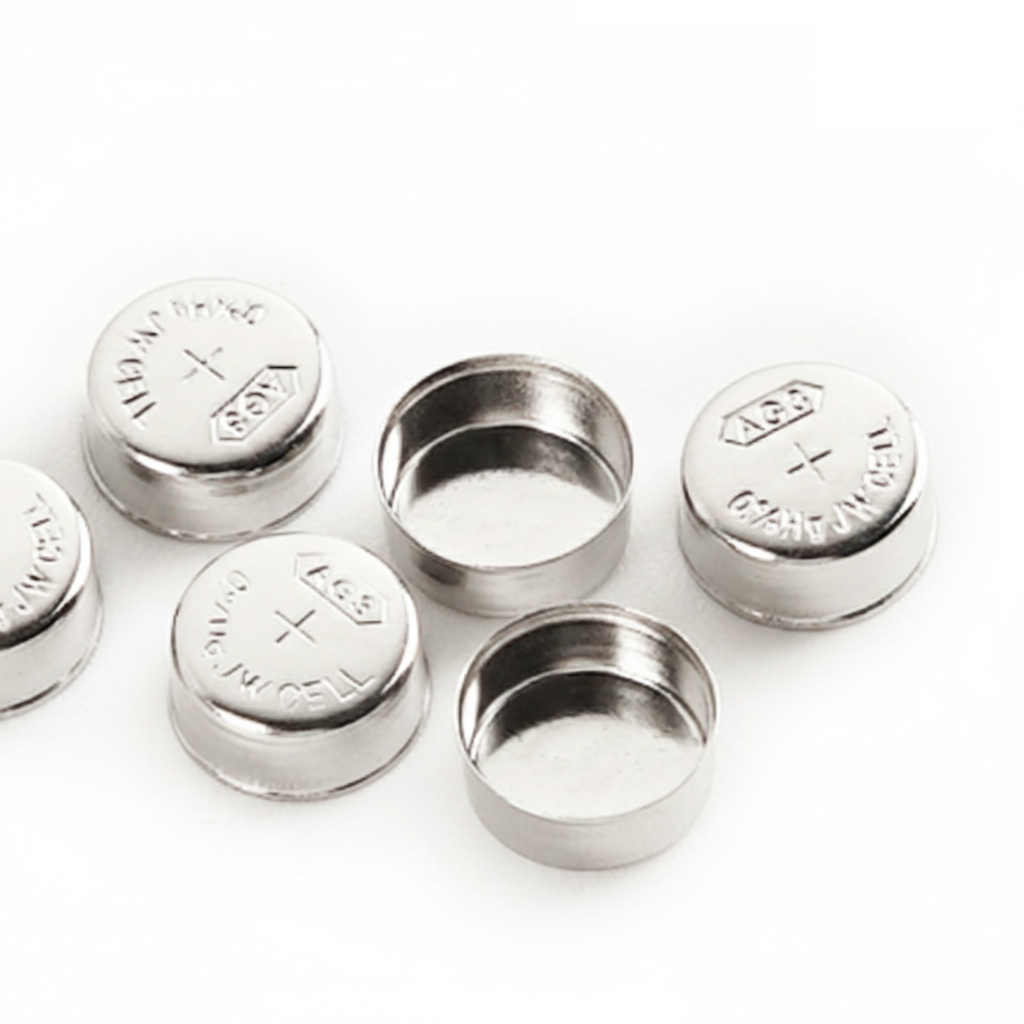

Detailed Dimensions (Positive Case / Can):
* Outer Diameter (Bottom): 7.7 mm
* Outer Diameter (Top Rim): 7.3 mm
* Height: 3.5 mm
* Wall Thickness: 0.25 mm

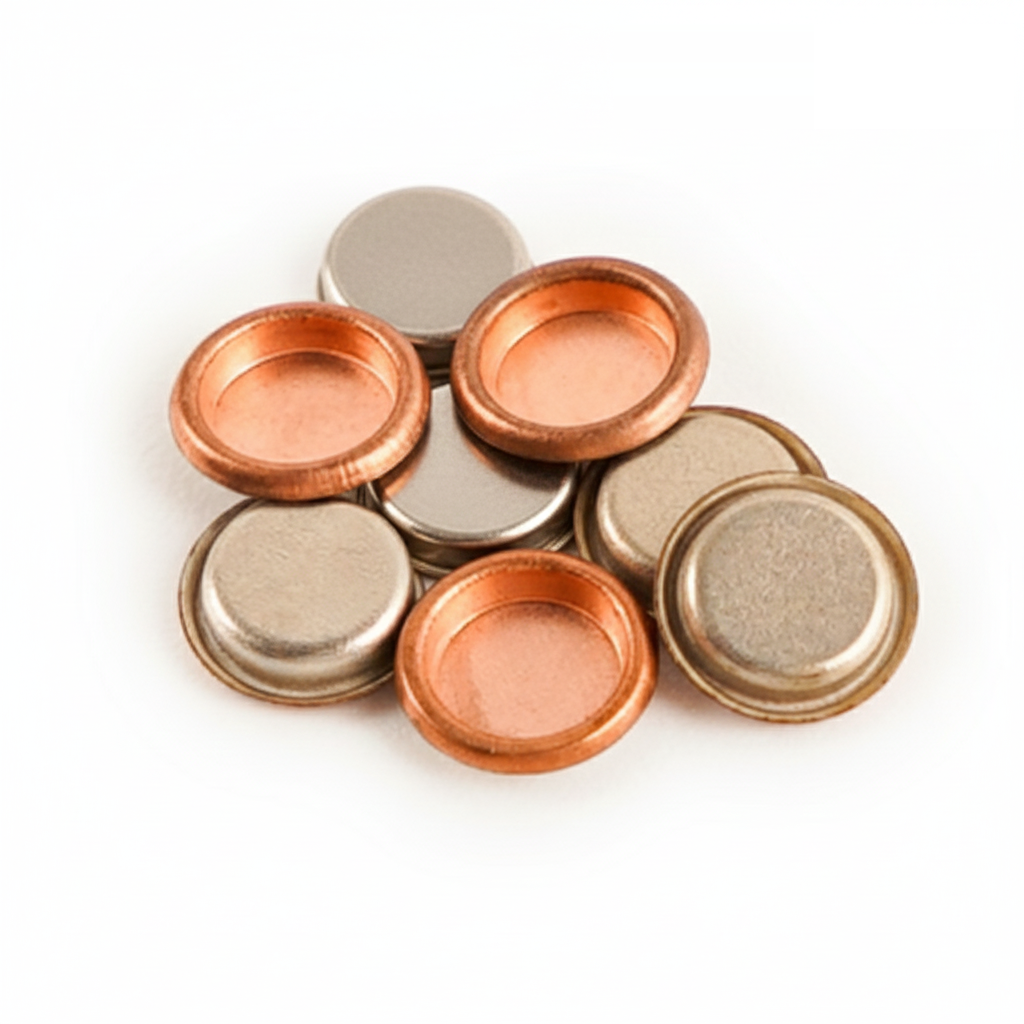

Detailed Dimensions (Negative Case / Cap):
* Flange Diameter: 6.5 mm
* Body Outer Diameter: 5.4 mm
* Total Height: 1.48 mm
* Internal Wall Height: 1.23 mm

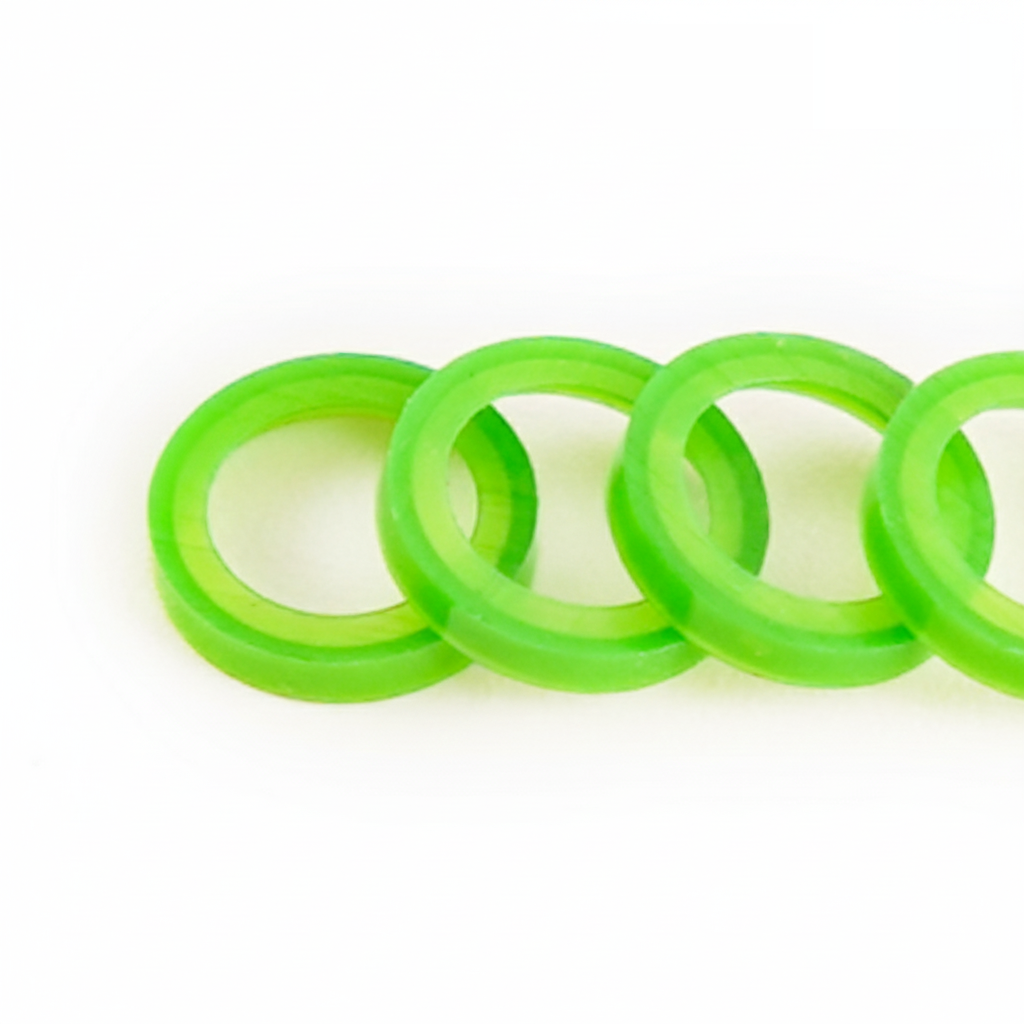

Detailed Dimensions (Sealing Ring / Gasket):
* Outer Diameter: 7.5 mm
* Inner Step Diameter: 6.5 mm
* Height: 1.35 mm
