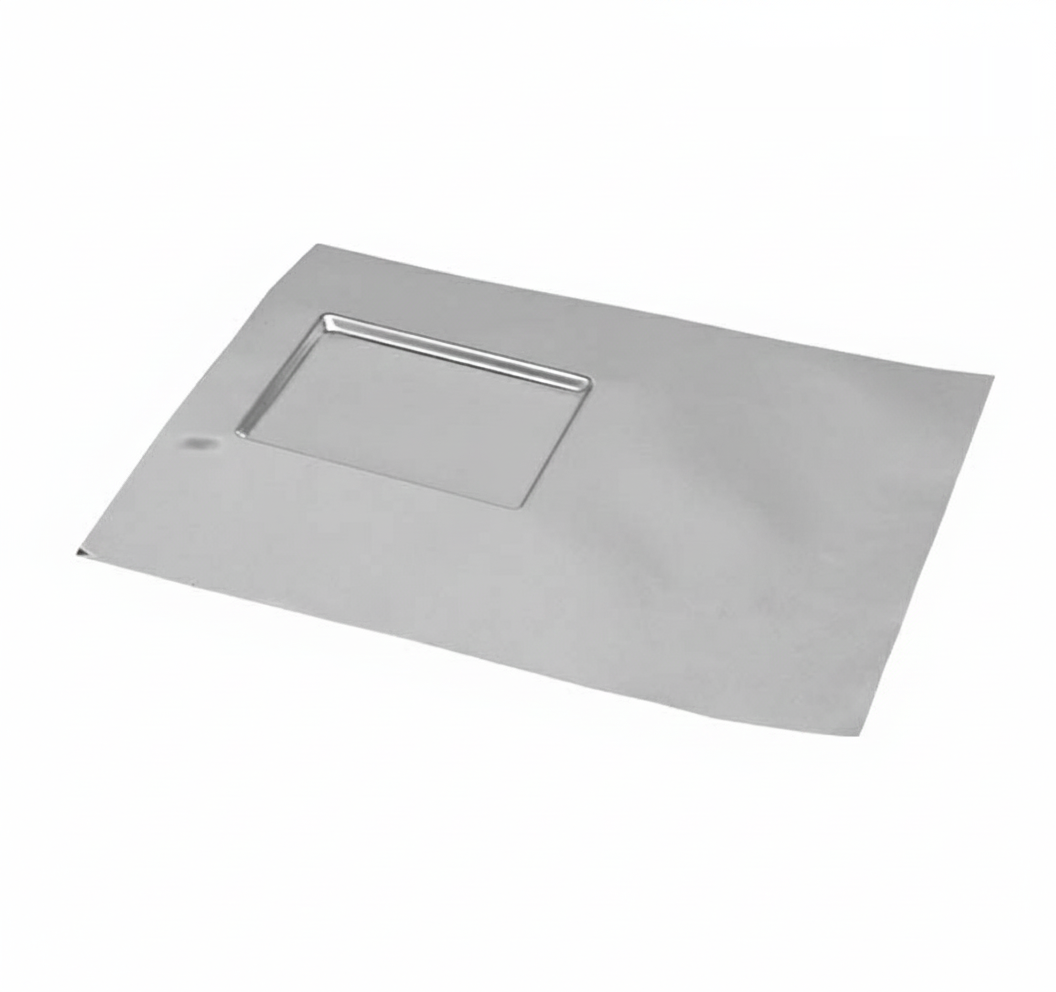

Embossed Aluminum Laminated Film for Pouch Cell Case
Battery Case

Embossed Aluminum Laminated Film for Pouch Cell Case

$179.99

Free shipping on orders over $100

  • Check Mark Satisfaction Guaranteed

Embossed Aluminum Laminated Film for Pouch Cell Case

Detailed Specifications
– Material Composition:
* Outer Layer (Polyamide): 0.025 mm (+-0.0025 mm) (JIS Z1714)
* Adhesive (Polyester-polyurethane): 4-5 g/m^2
* Barrier Layer (Aluminum foil): 0.040 mm (+-0.004 mm) (JIS A8079, A8021)
* Adhesive (Urethane-free): 2-3 g/m^2
* Inner Layer (Polypropylene): 0.040 mm (+-0.004 mm)
– Performance Metrics:
* Molding Depth: >= 5.0 mm
* Laminate Strength: Nylon/Al > 2N/15 mm, Al/CPP > 5N/15 mm
* Heat Seal Strength: >= 29.4N/15 mm (at 200deg C x 0.2Mpa x 2 sec)
* Moisture/O2 Transmission Rate: 200ppm / 5 years
– Quality Standards:
* Impurity: Diameter <= 1 mm
* Fish Eye: Diameter <= 2 mm (clear), <= 1 mm (coloured)
* Electrical Insulating: Good
* Solvent Retention: Less than 5mg/m^2

option

62 mm length x 46 mm width x 1 mm thickness，50 pieces per pack, 62 mm length x 46 mm width x 2 mm thickness，50 pieces per pack, 62 mm length x 46 mm width x 3 mm thickness，50 pieces per pack, 62 mm length x 46 mm width x 4 mm thickness，50 pieces per pack, 62 mm length x 46 mm width x 5 mm thickness，50 pieces per pack, 62 mm length x 46 mm width x 6 mm thickness，50 pieces per pack, 85120 air-pocket type，105 mm length x 84 mm width x 3 mm thickness，embossed using 280 mm x 200 mm aluminum-plastic laminate，50 pieces per pack, 85120 air-pocket type，105 mm length x 84 mm width x 4 mm thickness，embossed using 280 mm x 200 mm aluminum-plastic laminate，50 pieces per pack, 85120 air-pocket type，105 mm length x 84 mm width x 5 mm thickness，embossed using 280 mm x 200 mm aluminum-plastic laminate，50 pieces per pack, 85120 air-pocket type，105 mm length x 84 mm width x 6 mm thickness，embossed using 280 mm x 200 mm aluminum-plastic laminate，50 pieces per pack
