High-Foot Rectangular Plastic Battery Transfer Tray

Soft-Pack and Cylindrical Cell Transfer Trays

Application:
These plastic transfer trays are designed for laboratory handling, temporary storage, and batch transfer of soft-pack lithium batteries and cylindrical cells (e.g., 18650 / 21700). The trays feature elevated feet for stable stacking and improved airflow during processing.

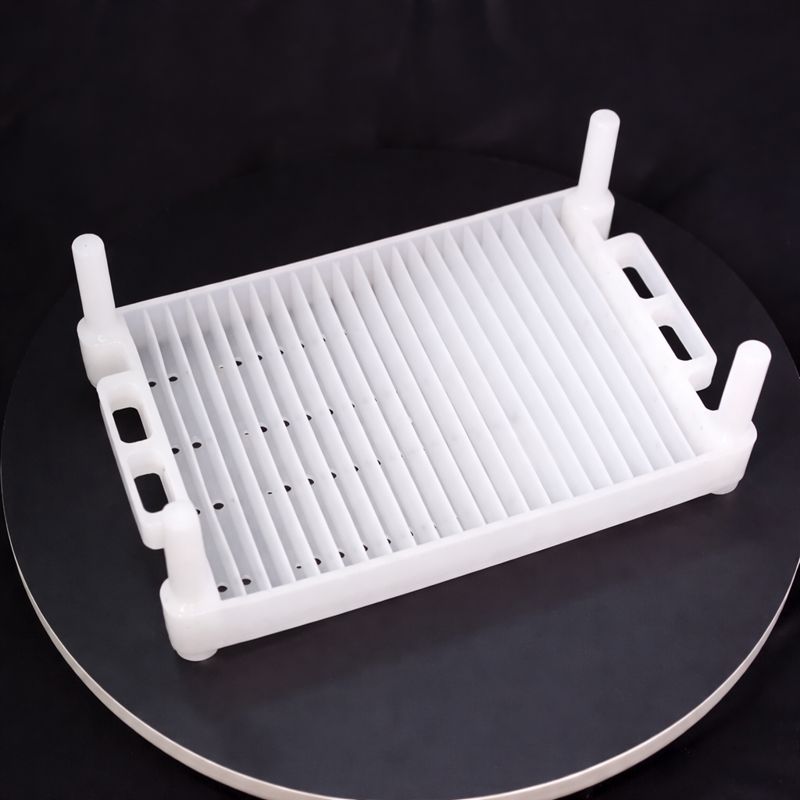

Model 1 – Soft-Pack Cell Transfer Tray (21 Slots)
Dimensions: 291 x 189 x 98 mm
Inner Slot Width: 15 mm
Tray Length (Measured): 290 mm
Tray Width (Measured): 200 mm
Tray Height (Measured): 100 mm
Notes: Suitable for soft-pack pouch cell handling; manual measurements may vary slightly.

Model 2 – 18650 Cell Transfer Tray (96 Round Slots)
Dimensions: 253.79 x 196.28 x 88 mm
Slot Type: 96 round holes
Compatible Cell Size: 18650
Tray Length (Measured): 290 mm
Tray Width (Measured): 150 mm
Tray Height (Measured): 140 mm
Inner Slot Width: 15 mm
Notes: Designed for secure organization and workflow transfer of 18650 cylindrical cells.

Model 3 – 21700 Cell Transfer Tray (59 Round Slots)
Dimensions: 253.79 x 196.28 x 94 mm
Slot Type: 59 round holes
Compatible Cell Size: 21700
Tray Length (Measured): 290 mm
Tray Width (Measured): 200 mm
Tray Height (Measured): 140 mm
Inner Slot Width: 15 mm
Notes: Supports large-format cylindrical cells with stable high-foot tray design.
