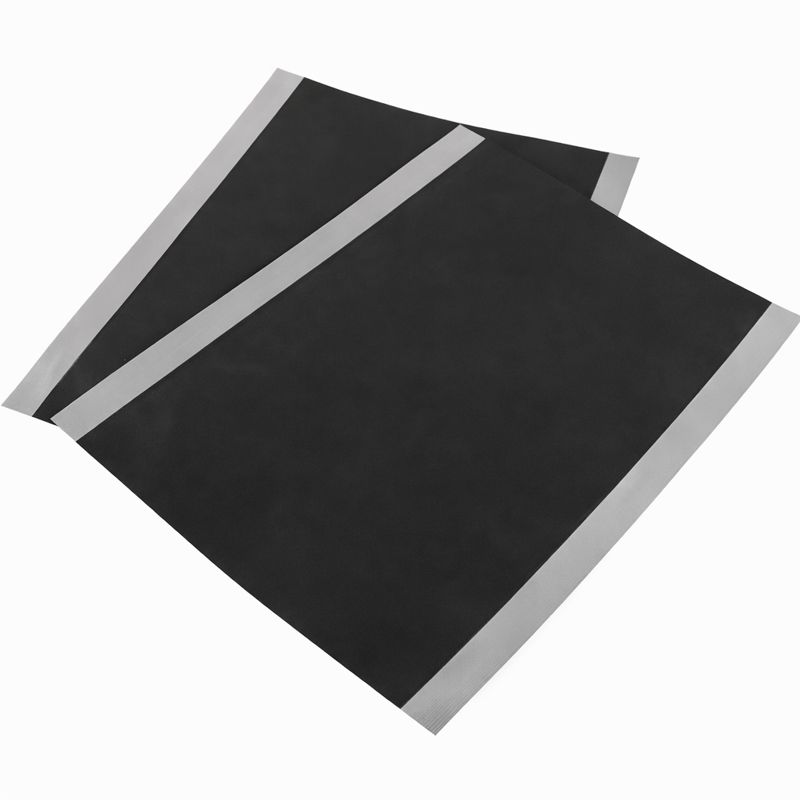

Lithium Cobalt Oxide (LCO) Cathode Sheet

Product: Single/Double-Sided Lithium Cobalt Oxide (LCO) Cathode Sheet
Application: Cathode Material for Lithium-ion Batteries
Product Overview: This product features a Lithium Cobalt Oxide (LCO) coating on an aluminum current collector, processed with high-precision calendering. Available in both single-sided and double-sided coating configurations to suit various lithium-ion battery research requirements.

Key Specifications (Single-Sided Reference):
Sheet Dimensions: 241 mm L x 200 mm W
Coated Area Dimensions: 241 mm L x 175 mm W (12.5 mm uncoated margin on each side)
Coating Type: Single-Sided (Calendered)
Current Collector Thickness: 16 um
Coating Areal Density: 11.5 ± 0.2 mg/cm^2 (Per Side)
Current Collector Areal Density: 4.22 mg/cm^2
Active Material Mass Percentage: 96% (Subject to actual product label)
Compaction Density: 3.5 ± 0.1 g/cm^3
Specific Capacity: 180 mAh/g (0.1C)
Working Voltage Range: 3.0 V – 4.5 V
Packaging Unit: 5 sheets/pack
Storage & Handling:
– Storage: Store in a strictly sealed container within a glove box or a drying oven at 60deg C.
– Preparation: Refer to standard active material calculation protocols.
Note: Thickness specifications provided (50-70 um) typically refer to the single-sided version; double-sided versions will vary in total thickness.
