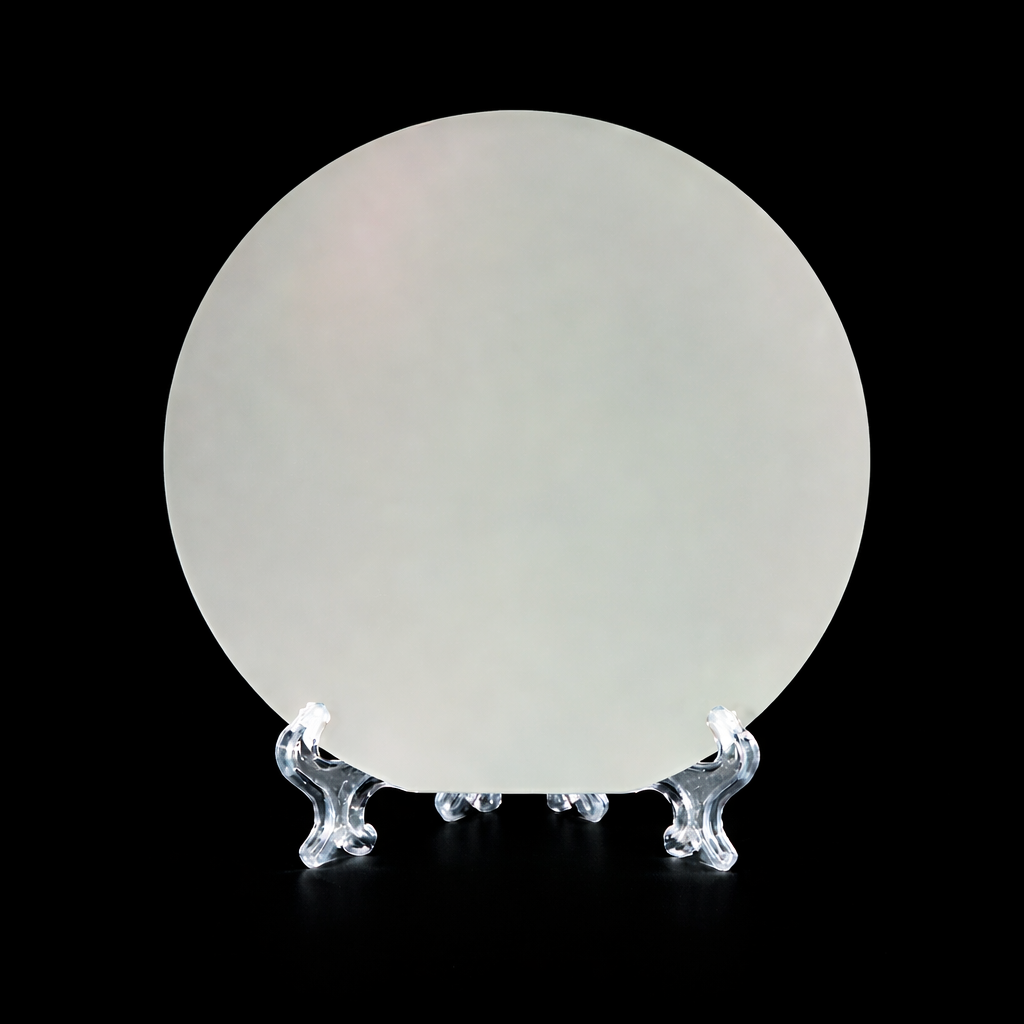

Lithium Niobate (LiNbO3) Single Crystal Wafer, 4″ × 0.5 mm
LiNbO3

Lithium Niobate (LiNbO3) Single Crystal Wafer, 4″ × 0.5 mm

Price range: $159.00 through $179.00

Free shipping on orders over $100

  • Check Mark Satisfaction Guaranteed

Standard Format: 4″ diameter (100 mm) × 0.5 mm circular wafer, X-cut, SSP. Large-format wafer for high-volume SAW chip production and integrated photonics.

Lithium Niobate (LiNbO3) Single Crystal Wafer

Product Overview:
Lithium Niobate (LiNbO3) is a ferroelectric material that exhibits excellent electro-optic, nonlinear optical, and piezoelectric properties. It is widely used in surface acoustic wave (SAW) filters, optical modulators, phase modulators, and optical frequency doublers.

Physical Properties:
– Crystal Structure: Trigonal System
– Lattice Constant: a = 5.148 Angstrom, c = 13.868 Angstrom
– Density: 4.64 g/cm^3
– Melting Point: 1250 °C
– Mohs Hardness: 5
– Curie Temperature: 1142 °C
– Growth Method: Czochralski (CZ)

Standard Specifications:
– Orientation Accuracy: miscut < 0.3°
– Surface Roughness: Ra < 0.5 nm
– Edge Orientation: Available upon request
– Surface Polish: Single-Side or Double-Side Polished

option

128° Y-cut，Double-Side Polished, 128° Y-cut，Single-Side Polished, 36° Y-cut，Double-Side Polished, 36° Y-cut，Single-Side Polished, 41° Y-cut，Double-Side Polished, 41° Y-cut，Single-Side Polished, 64° Y-cut，Double-Side Polished, 64° Y-cut，Single-Side Polished, X-cut，Double-Side Polished, X-cut，Single-Side Polished, Y-cut，Double-Side Polished, Y-cut，Single-Side Polished, Z-cut，Double-Side Polished, Z-cut，Single-Side Polished
