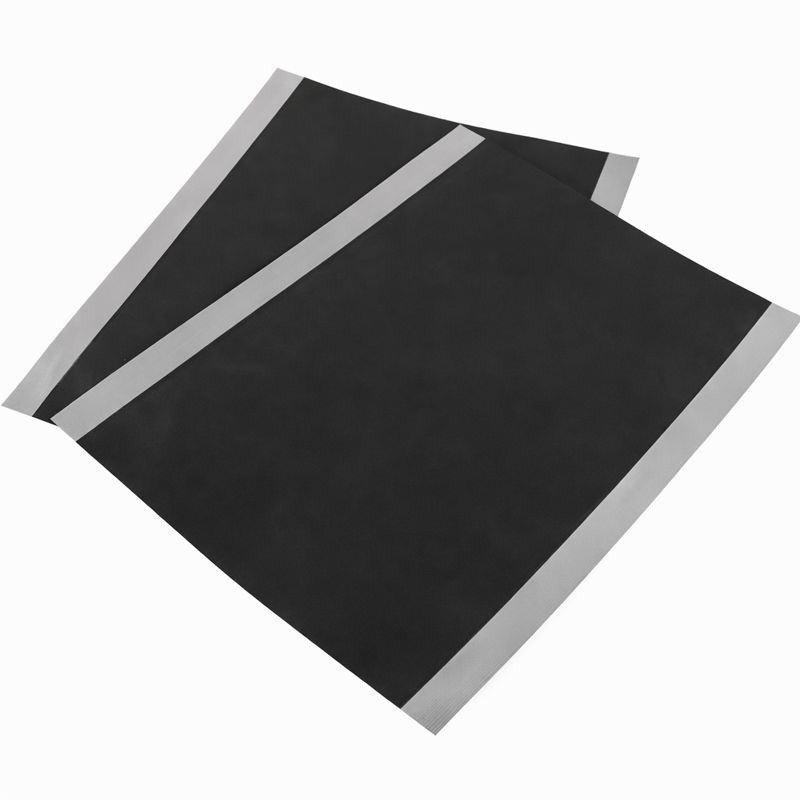

NCM 9-Series (Nickel Cobalt Manganese) Cathode Sheet

NCM 9-Series (Nickel Cobalt Manganese) Cathode Sheet (Single/Double-Sided Coated Aluminum Foil)
Application: Cathode Material for Lithium-ion Batteries
Product Overview: This product features a Nickel Cobalt Manganese (NCM 9-Series) coating on an aluminum current collector. It is designed for high-performance lithium-ion battery research.

Key Specifications (Double-Sided Reference):
Sheet Dimensions: 241 mm L x 200 mm W
Coated Area Dimensions: 241 mm L x 175 mm W (12.5 mm uncoated margin on each side)
Coating Type: Double-Sided
Current Collector Thickness: 16 um
Coating Areal Density: 21.0 ± 0.4 mg/cm^2 (Total Loading)
Current Collector Areal Density: 4.22 mg/cm^2
Active Material Mass Percentage: 95.5% (Subject to actual product label)
Compaction Density: 3.4 ± 0.1 g/cm^3
Specific Capacity: 202 mAh/g (Reference)
Working Voltage Range: 3.0 V – 4.3 V
Packaging Unit: 5 sheets/pack

Storage & Handling:
– Storage: Store in a strictly sealed container (e.g., glove box or 60deg C drying oven).
– Preparation: Refer to standard active material calculation protocols.
