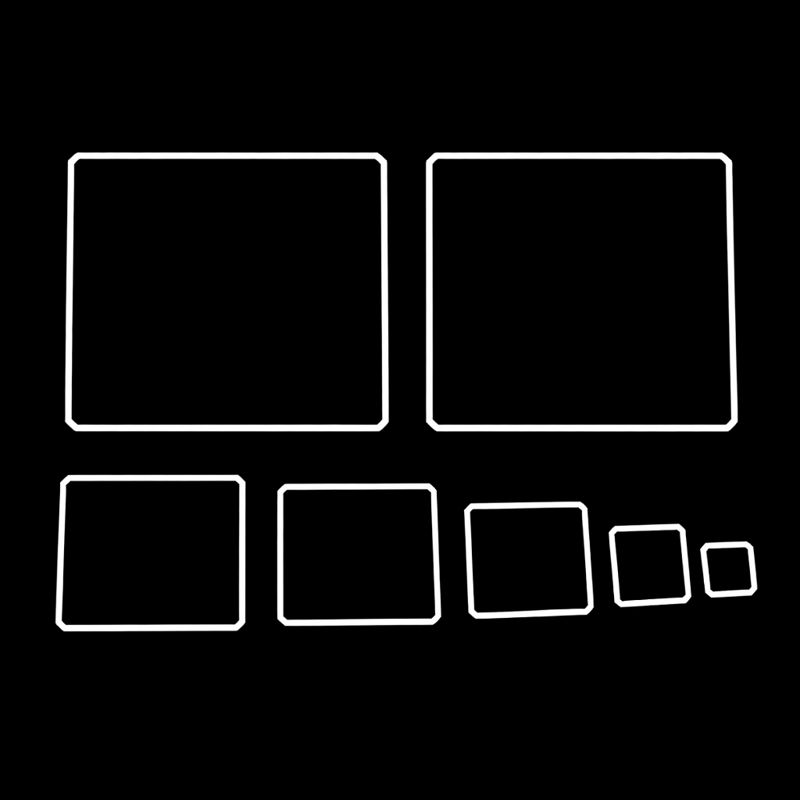

Square Sapphire (Al2O3) Single Crystal Substrates, C-plane (0001)

Square Sapphire (Al2O3) Single Crystal Substrates, C-Plane (0001)

Overview: High-purity single-crystal sapphire (Al2O3) substrates in square format, C-plane (0001) orientation. Available from 5 × 5 mm up to 20 × 20 mm, in 0.5 and 1.0 mm thickness, with single-side (SSP) or double-side (DSP) polishing. Square format is convenient for mask alignment, corner-referenced deposition, and lateral thin-film patterning.

Key Specifications:
– Format: Square (no flats/notches)
– Orientation: C-plane (0001)
– Sizes: 5×5, 10×10, 15×15, 20×20 mm (larger on request)
– Thickness: 0.5 mm or 1.0 mm
– Polish: SSP (single-side polished) or DSP (double-side polished)
– Purity: 99.999%+ single-crystal Al2O3
– Surface Roughness: <0.5 nm Ra (polished face)

Material Properties:
– Hardness: 9 Mohs
– Melting Point: 2,040°C
– Optical Transmission: 0.15 – 5.5 μm (UV to mid-IR)
– Thermal Conductivity: ~46 W/(m·K) at RT

Applications:
– Thin-film oxide deposition (ZnO, NiO, TiO2, Fe2O3)
– Optical window for UV and IR spectroscopy
– MEMS and microsensor substrate fabrication
– High-temperature substrate for CVD research
– Semiconductor research requiring square substrate geometry
– Photolithography mask alignment with square format

Notes:
– For circular wafers (standard diameters), see Al2O3-1-1 and Al2O3-1-2
– Custom sizes above 20×20 mm available on request
