Double-Sided Smooth Copper Foil
Current Collector

Double-Sided Smooth Copper Foil

Price range: $169.99 through $242.99

Free shipping on orders over $100

  • Check Mark Satisfaction Guaranteed

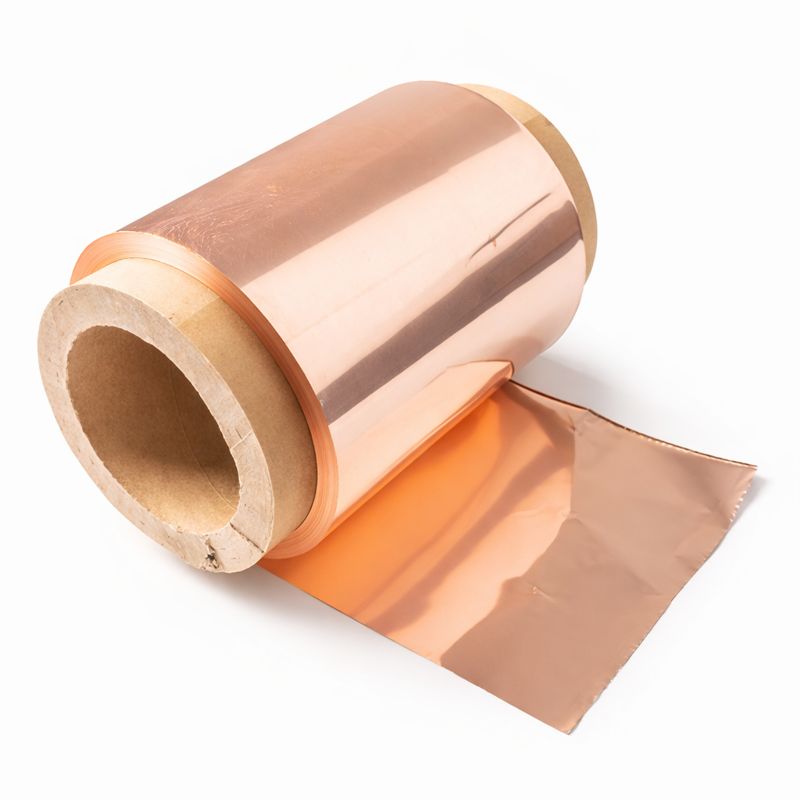

Double-Sided Smooth Rolled Copper Foil
Application: Electrode Current Collector for Electrochemical Systems, CVD/PVD Substrate, FPC/PCB
Product Overview: This rolled copper foil features a double-sided smooth finish and is characterized by excellent ductility, superior bending resistance, and high electrical conductivity. It is suitable for precision electrochemical and electronic applications.
Thickness: 25 um (Tolerance: 0-1 um)
Purity: > 99.8% (Typical: > 99.98%)
Areal Density: 220-225 g/m^2 (Typical: 222 g/m^2)
Mass Resistivity: < 0.17 Ohm-g/m^2 (Typical: 0.168 Ohm-g/m^2) Tensile Strength: > 30 kg/mm^2 (Typical: 41 kg/mm^2)
Elongation at Room Temperature: > 3.5% (Typical: 4.2%)
Elongation at High Temperature: > 4.0% (Typical: 5.5%)
Roughness (Side A, Ra): < 0.2 um (Typical: 0.12-0.15 um)
Roughness (Side B, Ra): < 0.2 um (Typical: 0.12-0.15 um)
Roughness (Rz): < 3.0 um (Typical: 1.3 um)
Oxidation Resistance (130deg C, 10 min): Pass
Packaging Unit: Roll
Standard Weights: 2 kg, or 4 kg per roll

option

25 um x 150 mm，Rolled Copper Foil，Double-Sided Smooth，2 kg/roll, 25 um x 150 mm，Rolled Copper Foil，Double-Sided Smooth，4 kg/roll
