Single-Sided NCM811 (Nickel Cobalt Manganese) Cathode Discs
Lithium-ion Battery Cathode Materials

Single-Sided NCM811 (Nickel Cobalt Manganese) Cathode Discs

$129.99

Free shipping on orders over $100

  • Check Mark Satisfaction Guaranteed

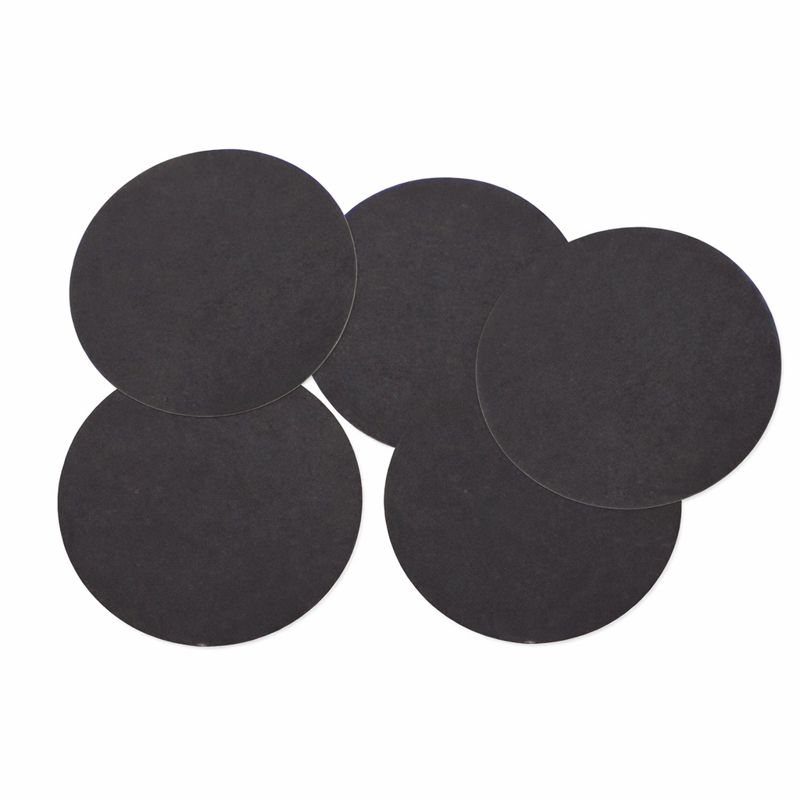

Single-Sided NCM811 (Nickel Cobalt Manganese) Cathode Discs on Aluminum Foil (Dia. 15 mm)
Application: Cathode Material for Lithium-ion Batteries
Product Overview: This product consists of a Nickel Cobalt Manganese (NCM811) single-sided coating on an aluminum current collector, precision-cut into discs and ready for coin cell assembly.

Key Specifications (Single-Sided Reference):
Disc Diameter: 15 mm
Coating Type: Single-Sided (Calendered)
Current Collector Thickness: 16 um
Coating Areal Density: 10.5 ± 0.20 mg/cm^2
Current Collector Areal Density: 4.22 mg/cm^2
Compaction Density: 2.75 ± 0.1 g/cm^3
Active Material Mass Percentage: 95% (Subject to actual product label)
Specific Capacity: 190 mAh/g (0.1C Reference)
Working Voltage Range: 3.0 V – 4.3 V

Storage & Handling:
– Storage: Store in a strictly sealed container (e.g., glove box or 60deg C drying oven).
– Preparation: Refer to standard active material calculation protocols.
Packaging Unit: 100 sheets/box

option

Dia. 15 mm，100 sheets/box
